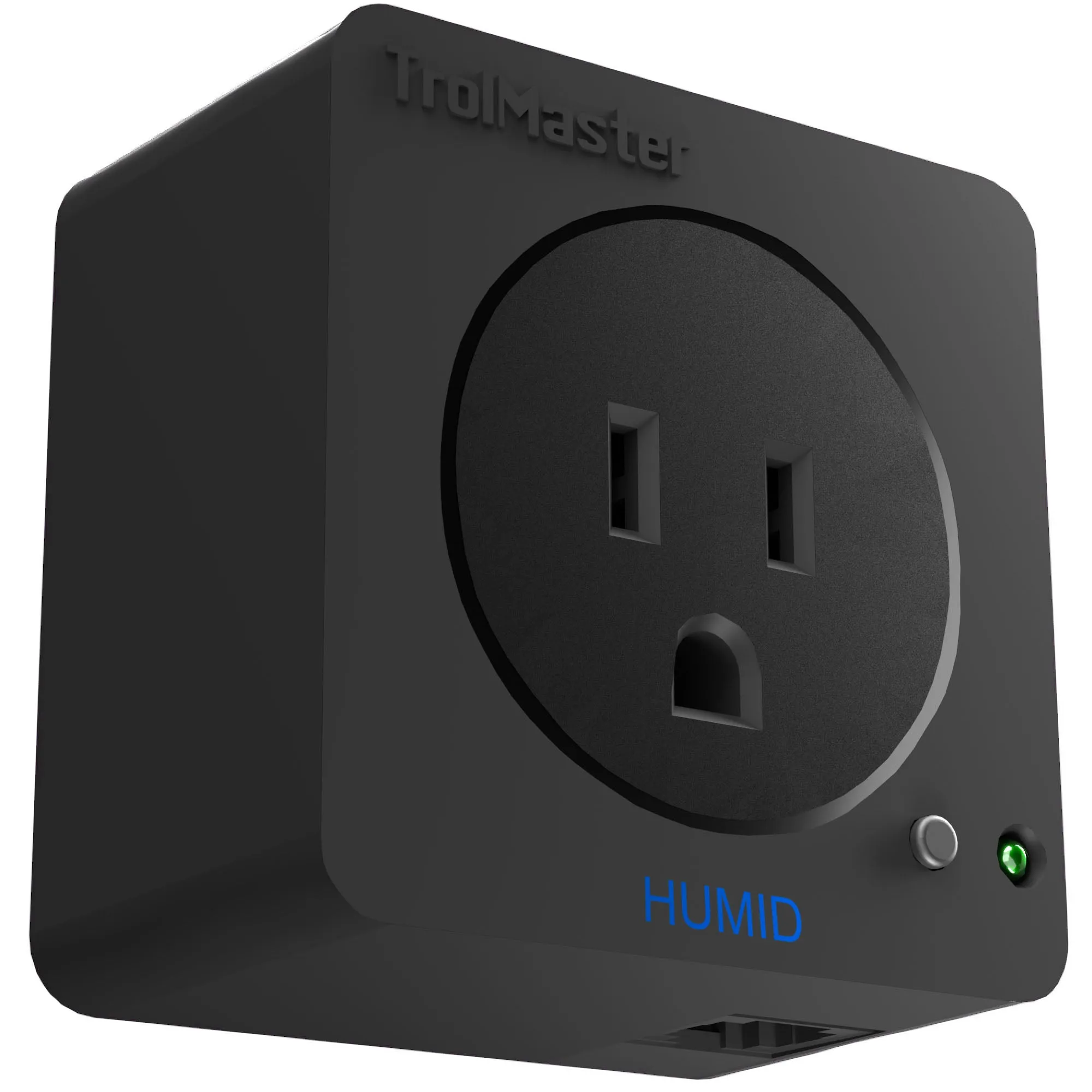

The TrolMaster DSH-1 Humidity control / device modules allow user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. The DSH modules are rated at 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.

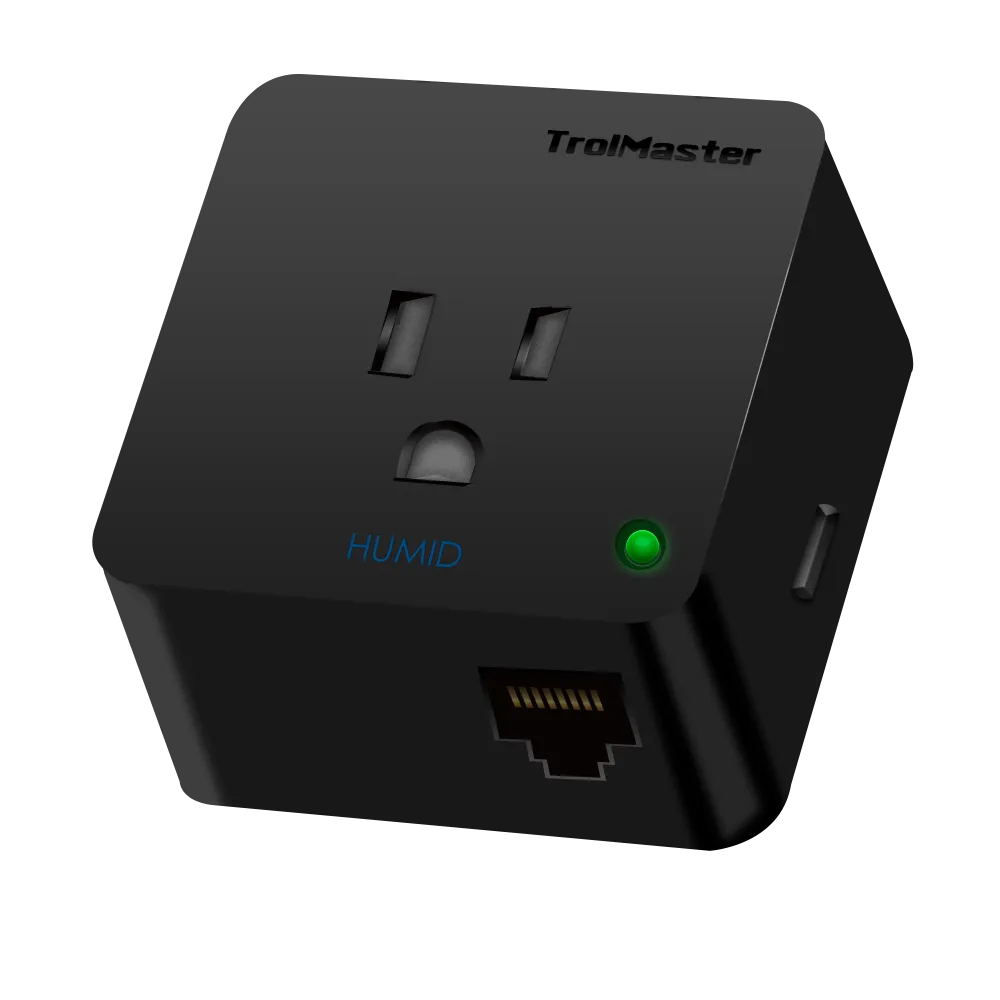

LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
