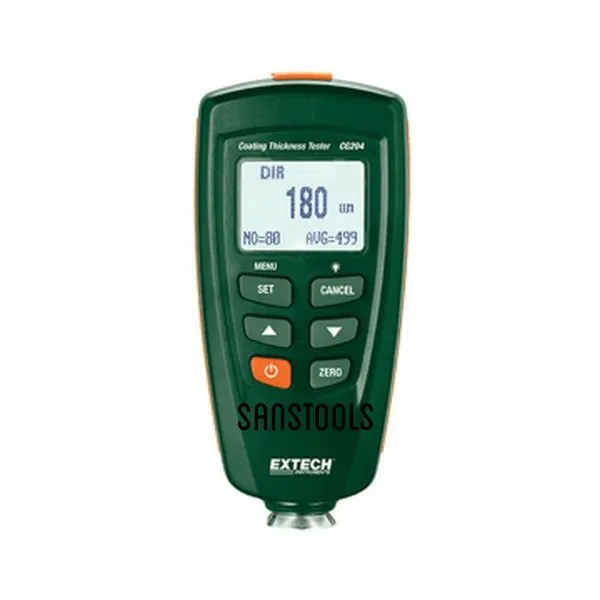

Name: Extech CG204 Coating Thickness Meter 0 to 1250µm (0 to 49mils)
SKU: 2076278

Product Details ＋

The Extech CG204 Coating Thickness Meter is a versatile and portable tool designed for non-invasive measurement of coatings on ferrous and non-ferrous substrates. It automatically recognizes the type of substrate using dual technology—magnetic induction for ferrous and eddy current for non-ferrous materials. This ensures accurate and precise readings. With features like single and continuous measurement modes, user-programmable high/low alarms, and a 400-reading memory storage, it is ideal for quality control and inspection tasks. The device includes a large LCD for easy reading and comes with all necessary accessories for immediate use.

Key Features

Dual Technology Measurement: Uses magnetic induction for ferrous and eddy current for non-ferrous substrates.
Measurement Modes: Offers both single and continuous measurement options for flexibility.
Memory Storage: Stores up to 400 readings, enabling data management and analysis.
User-Programmable Alarms: Set high and low limits to trigger visual and audio alerts.
Automatic Substrate Recognition: Quickly identifies ferrous or non-ferrous materials for efficient measurement.
Portable Design: Lightweight and easy to carry, making it suitable for field and factory use.

Specifications

Measurement Range (Ferrous): 0 to 1250µm (0 to 49 mils)
Measurement Range (Non-Ferrous): 0 to 1250µm (0 to 49 mils)
Basic Accuracy: ±3% for both ferrous and non-ferrous measurements
Max Resolution: 0.1µm (0.004 mils)
Min Curvature Radius:
- Ferrous: 1.5mm (59.06 mils)
- Non-Ferrous: 3mm (118.1 mils)
Min Diameter:
- Ferrous: 7mm (275.6 mils)
- Non-Ferrous: 5mm (196.9 mils)
Min Substrate Thickness:
- Ferrous: 0.5mm (19.69 mils)
- Non-Ferrous: 0.3mm (11.81 mils)
Working Principle:
- Ferrous: Magnetic Induction
- Non-Ferrous: Eddy Current
