The LS-B10 Machine Control Laser Receiver by Topcon. It is versatile and excels in a variety of tasks, such as site preparation, trench and pipe alignment, trench excavation, quality control, vertical alignment, and leveling footings and forms. With a 270-degree laser detection angle, this receiver is effective on both ground-level and sloped terrain. It is specifically designed for small machines like backhoes, mini-excavators, skid steer loaders, and other compact equipment, offering an economical solution for implementing grade control. The LS-B10 is designed for easy setup with a magnetic mount, streamlining the integration process on any job site. As a go-to device for professionals in construction, excavation, and landscaping, the Topcon LS-B10 Machine Control Laser Receiver delivers exceptional performance and reliability for both large-scale and smaller projects.

Key Features

Integrated CAN Support: Facilitates connection to the Topcon RD-100W Remote Display (sold separately), enhancing operational versatility.

Comprehensive LED Indicators: Provides clear, immediate feedback with five grade indicators, two lost beam indicators, one low battery alert, and one level alert, ensuring continuous, informed operation.

Extended Battery Life: Powered by three AA alkaline batteries, the LS-B10 boasts an impressive operation time of up to 100 hours, minimizing downtime.

Rugged and Waterproof Design: With an IP66 rating, this laser receiver is built to endure tough environmental conditions, offering both durability and reliability.

Compact and Lightweight: Weighing just 500 grams, the LS-B10 offers exceptional portability and ease of installation on a wide range of machinery.

Specifications

LS-B10

• Vertical Detecting Range: 4.72 inches
• Horizontal Detecting Range: 270°
• Precision Accuracy Settings
  • Mode 1: 0
  • Mode 2: .08
  • Mode 3: .24
  • Mode 4: .47
  • Additional Mode: 1.18
• Grade LED Patterns: 5 grade, 2 lost beam, 1 low battery, 1 level alert
• LED Grade Indicators: Red (▲) Green (▬) Red (▼)
• LCD Grade Indicators: 5 channels on-grade 10 gradual triangles (±5)
• Wireless Capable: NO
• Ports: N/A
• Operating Time: 100 hours
• Weight: 1.10 lbs
• Size with magnet (inches): 4.53 x 1.53 x 7.09
• Part Number: 312660101

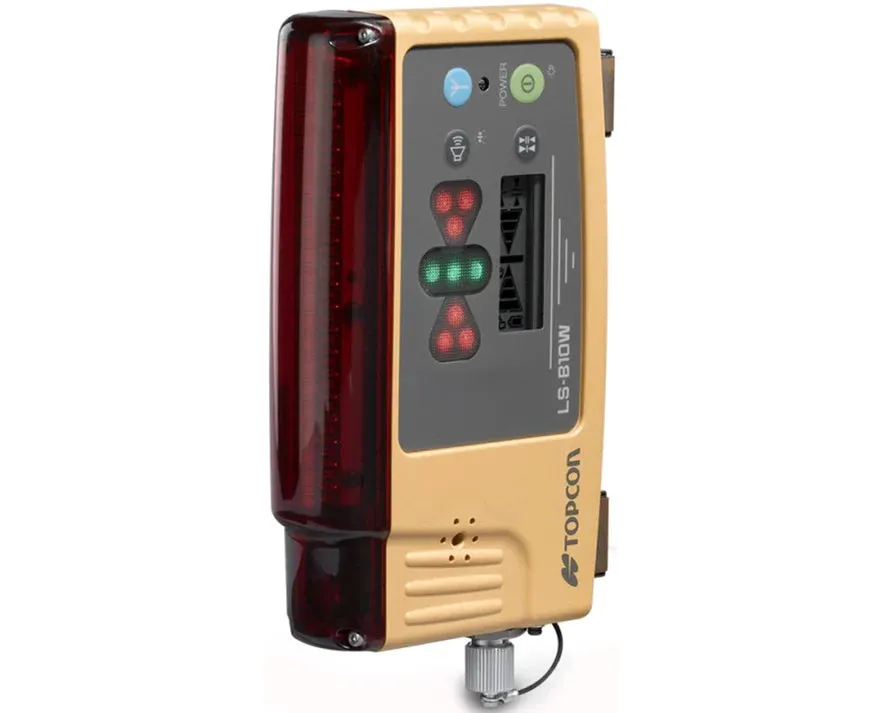

LS-B10W

• Vertical Detecting Range: 4.72 inches
• Horizontal Detecting Range: 270°
• Precision Accuracy Settings
  • Mode 1: 0
  • Mode 2: .08
  • Mode 3: .24
  • Mode 4: .47
  • Additional Mode: 1.18
• Grade LED Patterns: 5 grade, 2 lost beam, 1 low battery, 1 level alert
• LED Grade Indicators: Red (▲) Green (▬) Red (▼)
• LCD Grade Indicators: 5 channels on-grade 10 gradual triangles (±5)
• Wireless Capable: YES
• Ports: CAN
• Operating Time: 20 hours
• Part Number: 312660111
