Product Details
＋

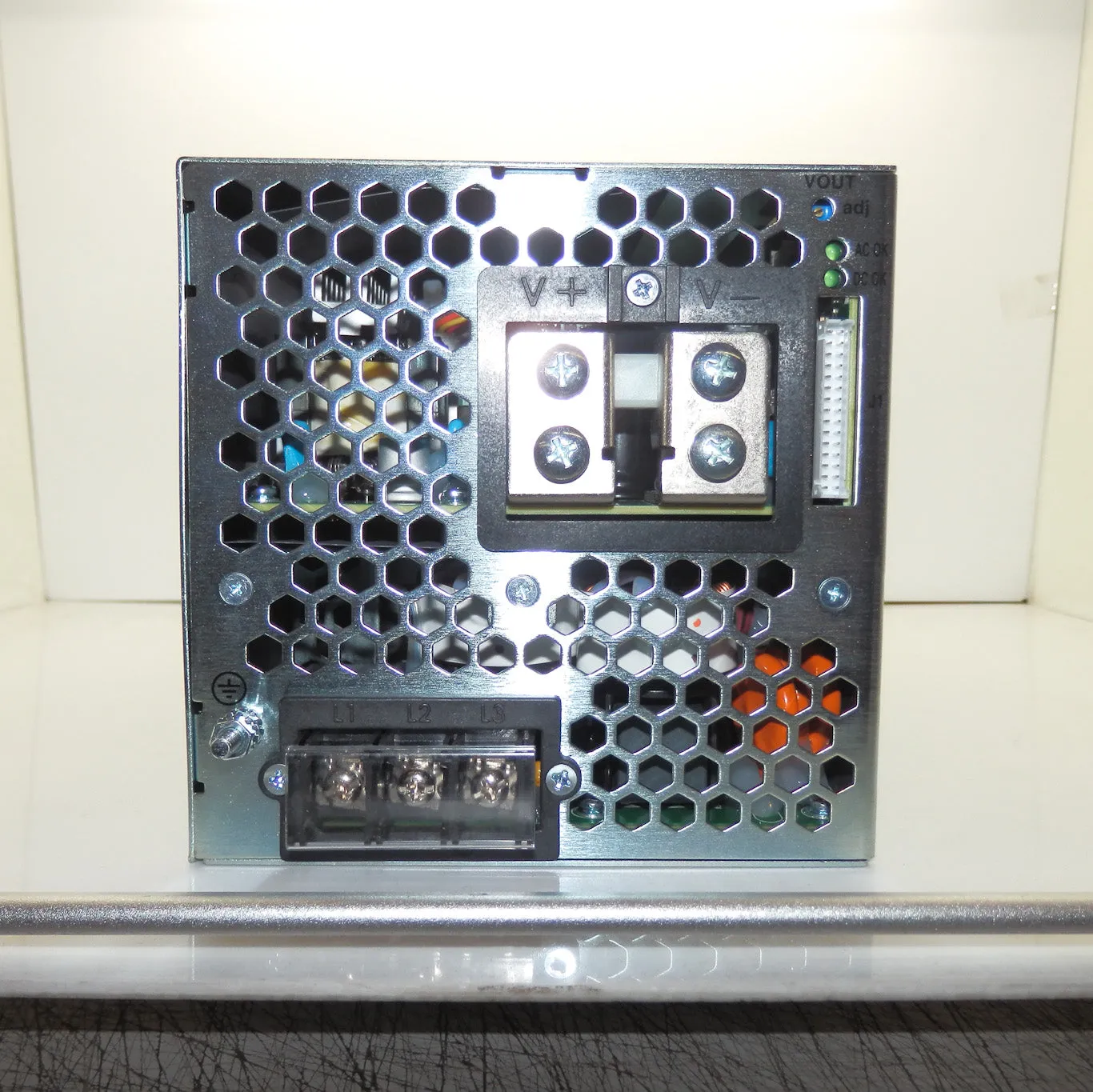

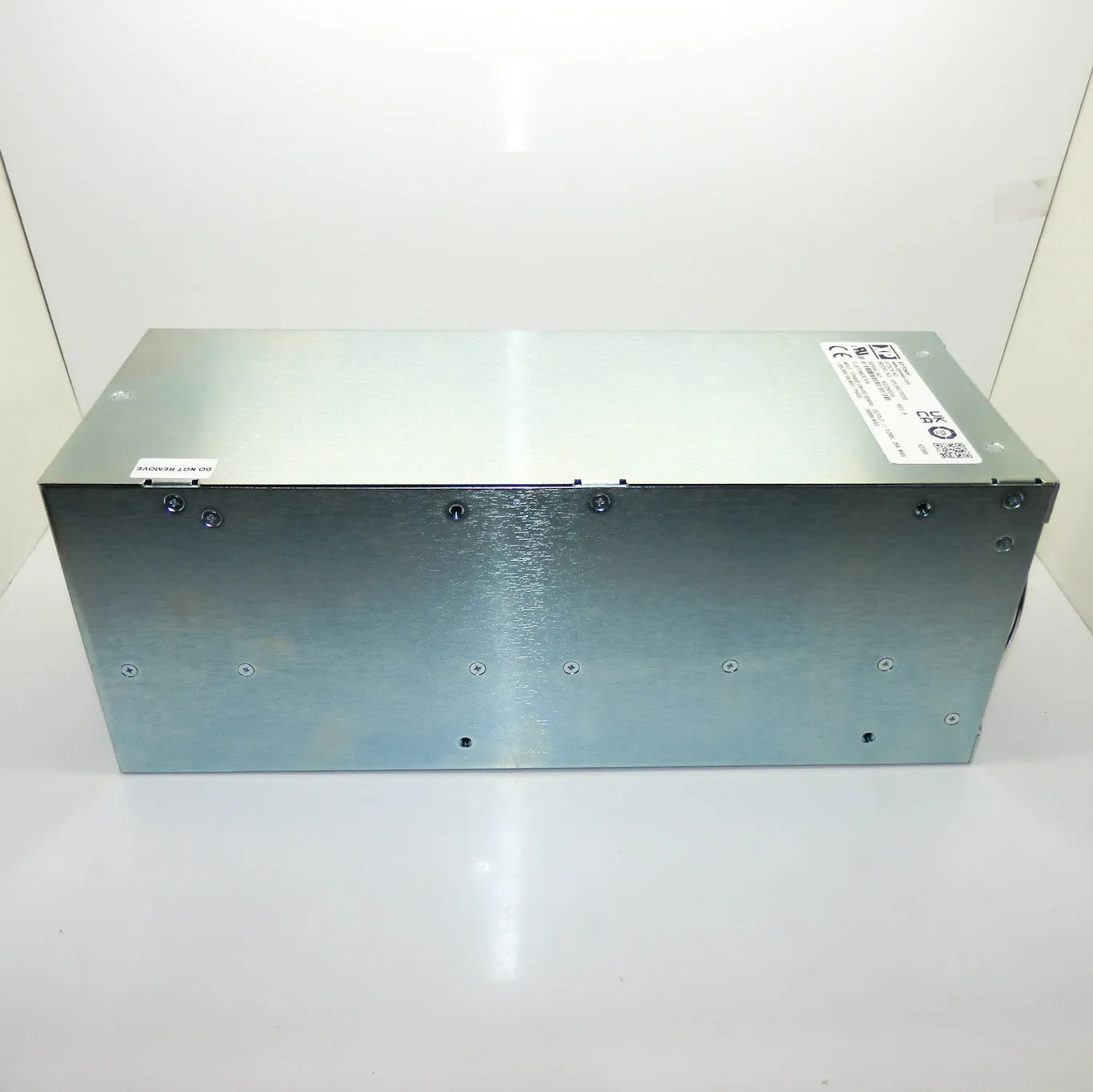

The HPL5K0 series offers ultimate flexibility with both output voltage and output current programming and user defined signals, warnings and alarms. Programming is via voltage, I²C PMBus, RS485 and CANopen in a very high efficiency, high power density 5kW chassis mount package. The HPL5K0 can be used in both constant voltage and constant current operation.
Specifications:
- Max Output Power: 5000W
- Output Voltage V1 Nominal: 200 VDC
- Output Voltage V1 Maximum: 210 VDC
- Output Current Minimum: 0.0A
- Output Current Maximum: 25.0 A
- Efficiency: 92%
Features:
- 3 Phase 180 to 264 VAC input - 3 wire & earth
- High efficiency - up to 93%
- Programmable output voltage (0-105%)
- Programmable output current (0-110%)
- Parallel operation
- Analog and digital interfaces
- Multiple digital protocols - PMBus, CANopen, MODBUS &âSCPI
- Fully featured signals & controls
- 5V/2A standby output
- Graphical user interface (GUI)
