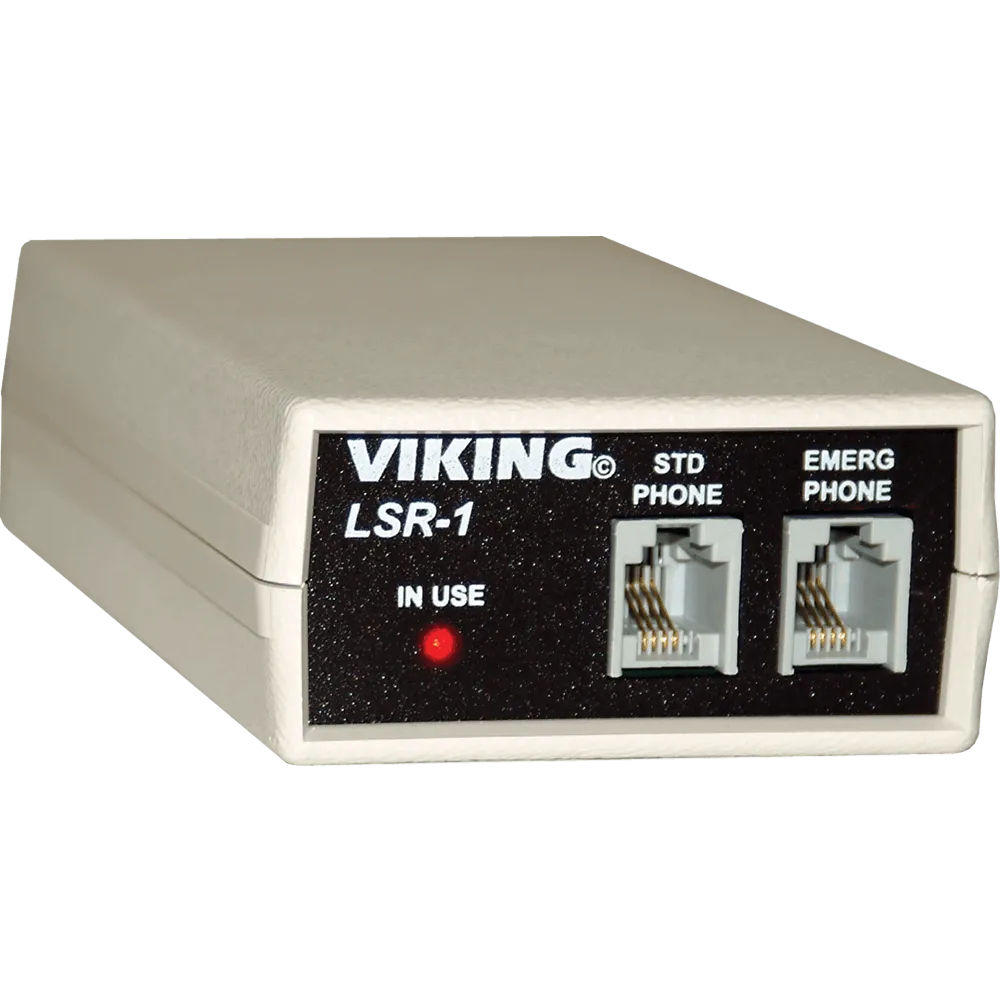

Viking LSR-1 Features:

• Interrupts any call in progress and returns fresh dial tone to the emergency phone
• Can be used on any C.O. line or analog PABX/KSU station
• Modular connections for easy installation
• Operates on any 12 - 32V DC power source
• 12V DC adapter provided
• During power outages the line is connected directly to the emergency device
• Off hook detection LED for emergency device port
• Handy test button to simulate an emergency device off hook
• UL listed power adapter provided
• Manufacturer Warranty
  2 Year Limited Warranty

Viking LSR-1 Applications:

• Emergency phones in elevators, hallways, parking ramps, etc.
• Security systems or alarm panels with dialers
• Cash machines, credit card readers or any other device that requires instant access to a phone line

Viking LSR-1 Specifications:

• Power: 120V AC / 12V DC, 500mA UL listed adapter provided
• Dimensions: 4.7” x 1.4” x 2.8” (119mm x 36mm x 71mm)
• Temperature: 32°F to 90°F (0°C to 32°C)
• Humidity: 5% to 95% non-condensing humidity
• Talk Battery: 32 V DC
• Connections: (2) RJ11 jacks, (1) RJ11 plug
