Product Details
＋

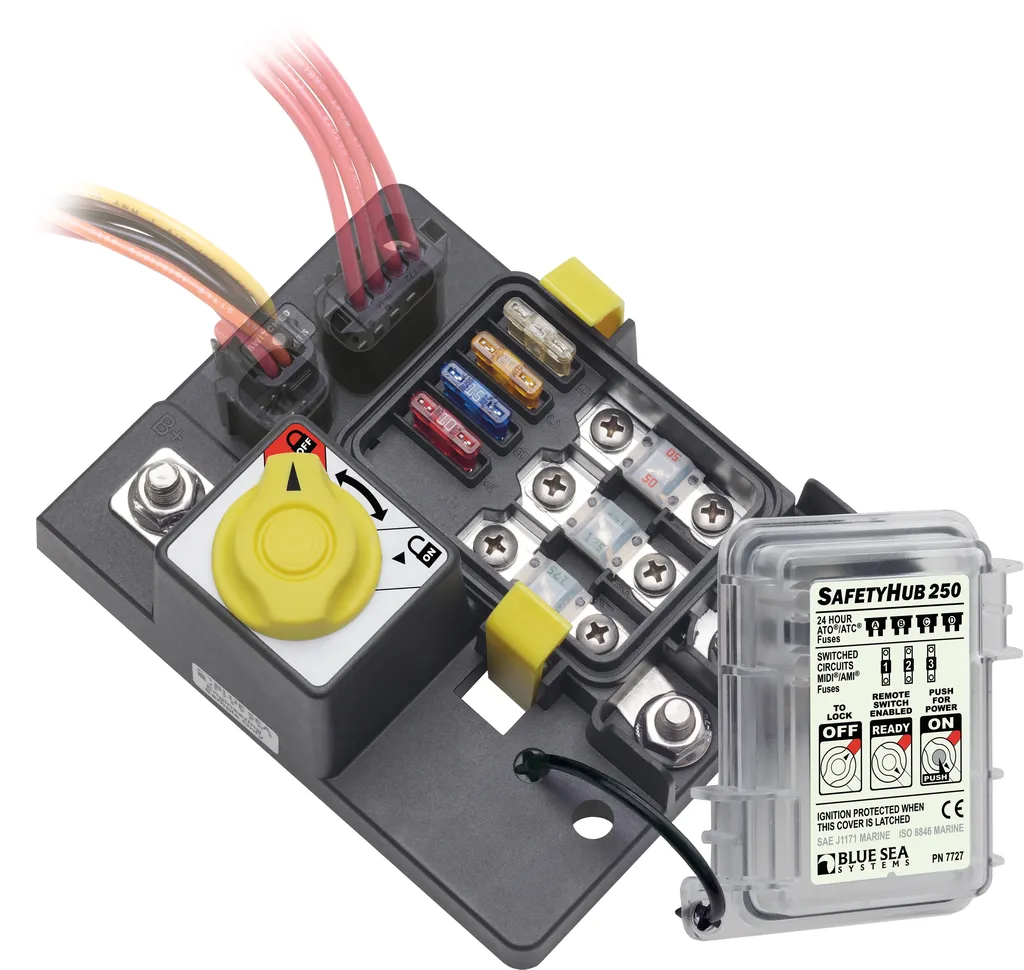

Local control knob switches high-amp circuits for emergency shutdown or servicingBattery control from a remote location increases safety and convenienceUp to three switched 30A_200A MIDIÆ/AMIÆ fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiersFour 24-hour 1A_20A ATO/ATC fuses [sold separately] ideal for circuits including bilge pumps, alarms, and clock memoryIntegrated connector plugs eliminate loose wires and provide a secure, waterproof connectionIgnition protected fuse block meets Coast Guard and ABYC requirements for installation on gasoline or diesel boats
Specifications:
Circuits: 7
Stud Size: M8 x 1.25
Operating Voltage: 12V
Amperage Maximum Operating - combined: 280A
Recommended Ring Terminal M8: (5/16")
Screw Torque, 8-32: 18in-lb (2.03 Nm)
Screw Torque, M5: 27in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.75lb (1.7 kg)
