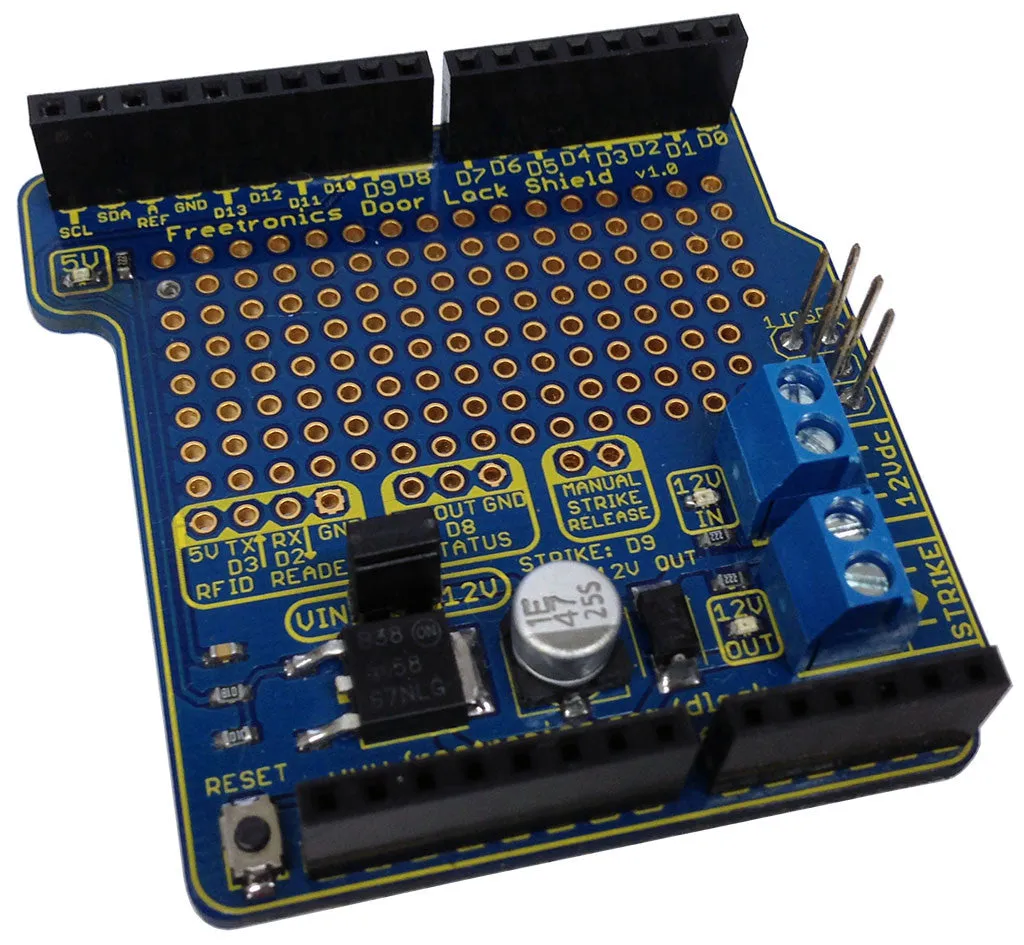

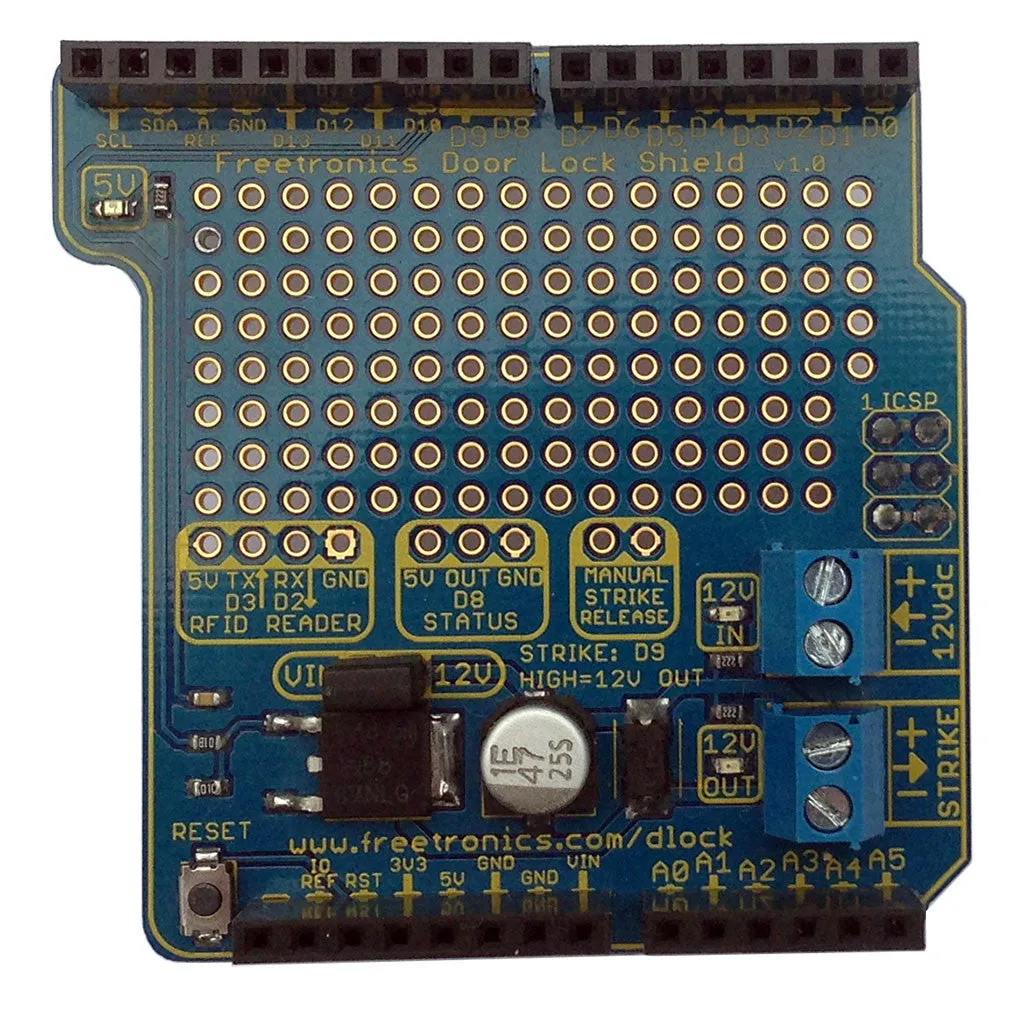

This shield allows your Arduino to control a door lock using an electric strike plate and one of a number of commonly-available RFID modules, and is based on the circuit described in the "RFID Access Control System" project in the book "".

Note: Does not include the RFID reader module itself. You need to purchase a module separately. We recommend as a good source of compatible modules.

Supported reader modules include:

• ID12
• ID20
• RDM630
• RDM880
• HF MultiTag

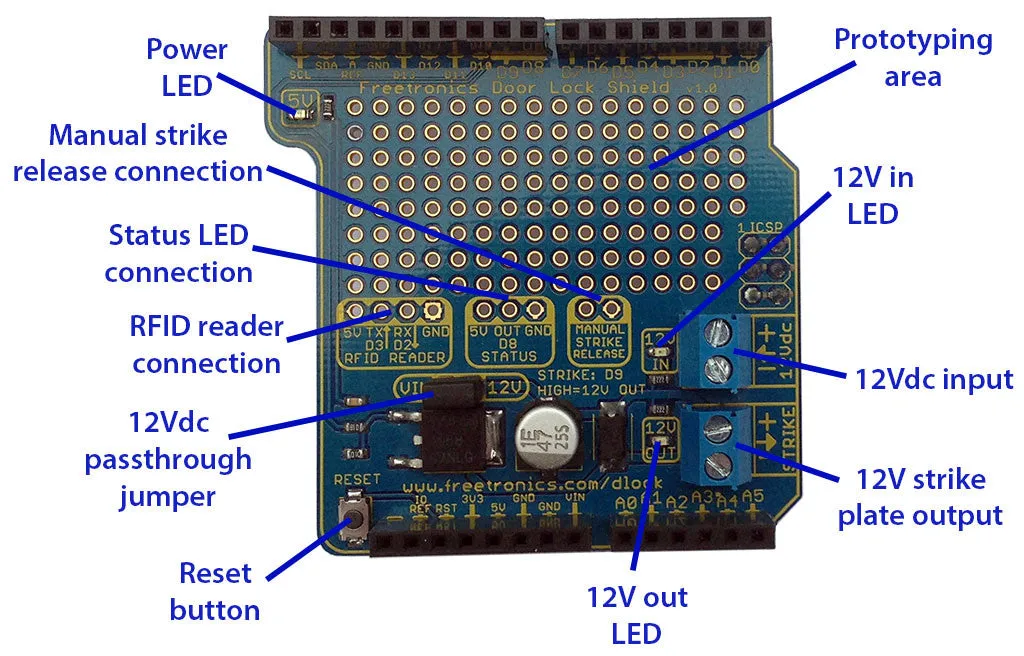

Features

• Connections for RFID reader module
• Connections for status LED output
• Connections for manual strike release
• Output to control 12V electric door strike
• Power pass-through jumper
• Reset button wired through to Arduino reset pin
• Blue "Arduino power" LED
• Green "External power" LED
• Red "Strike plate activated" LED
• Prototyping area
