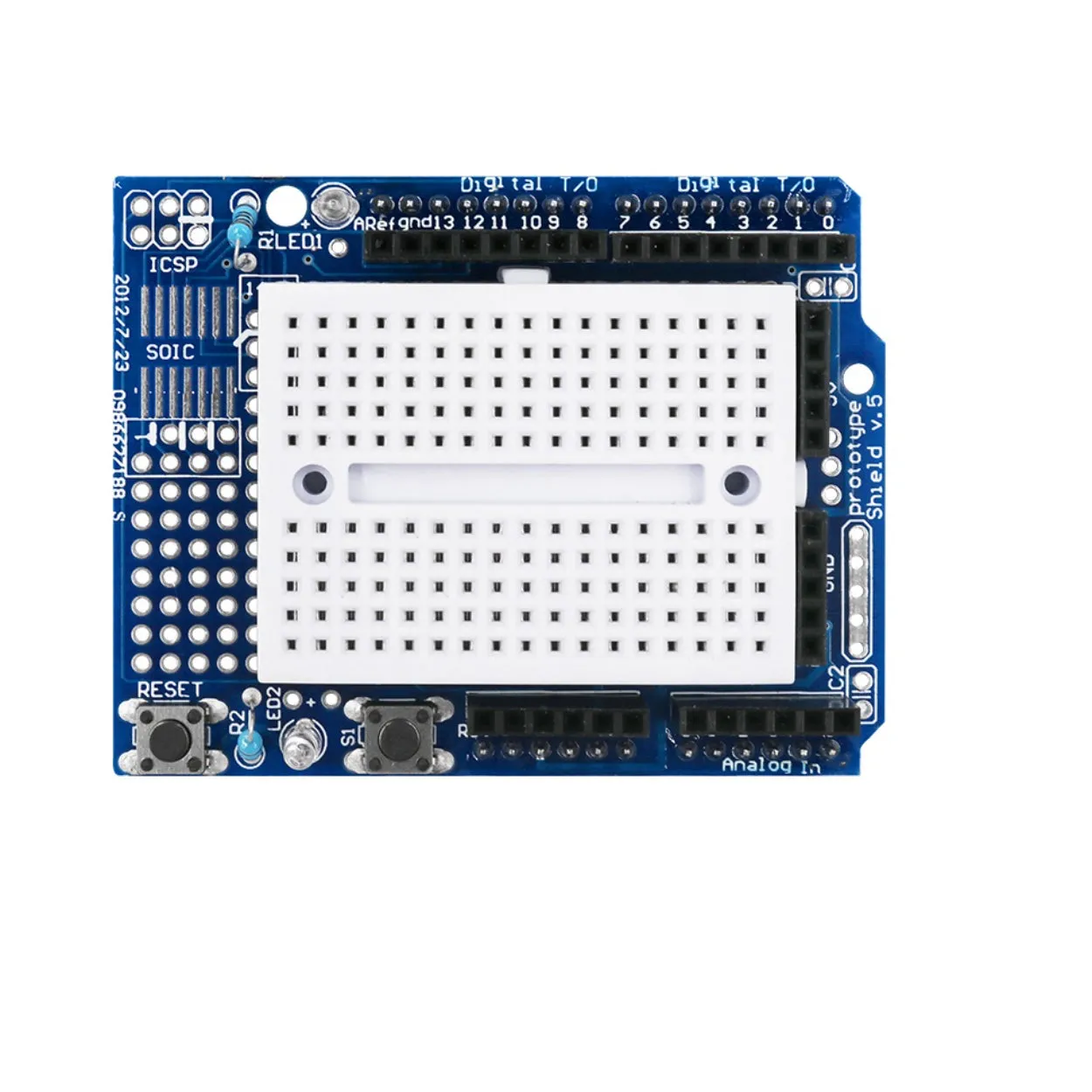

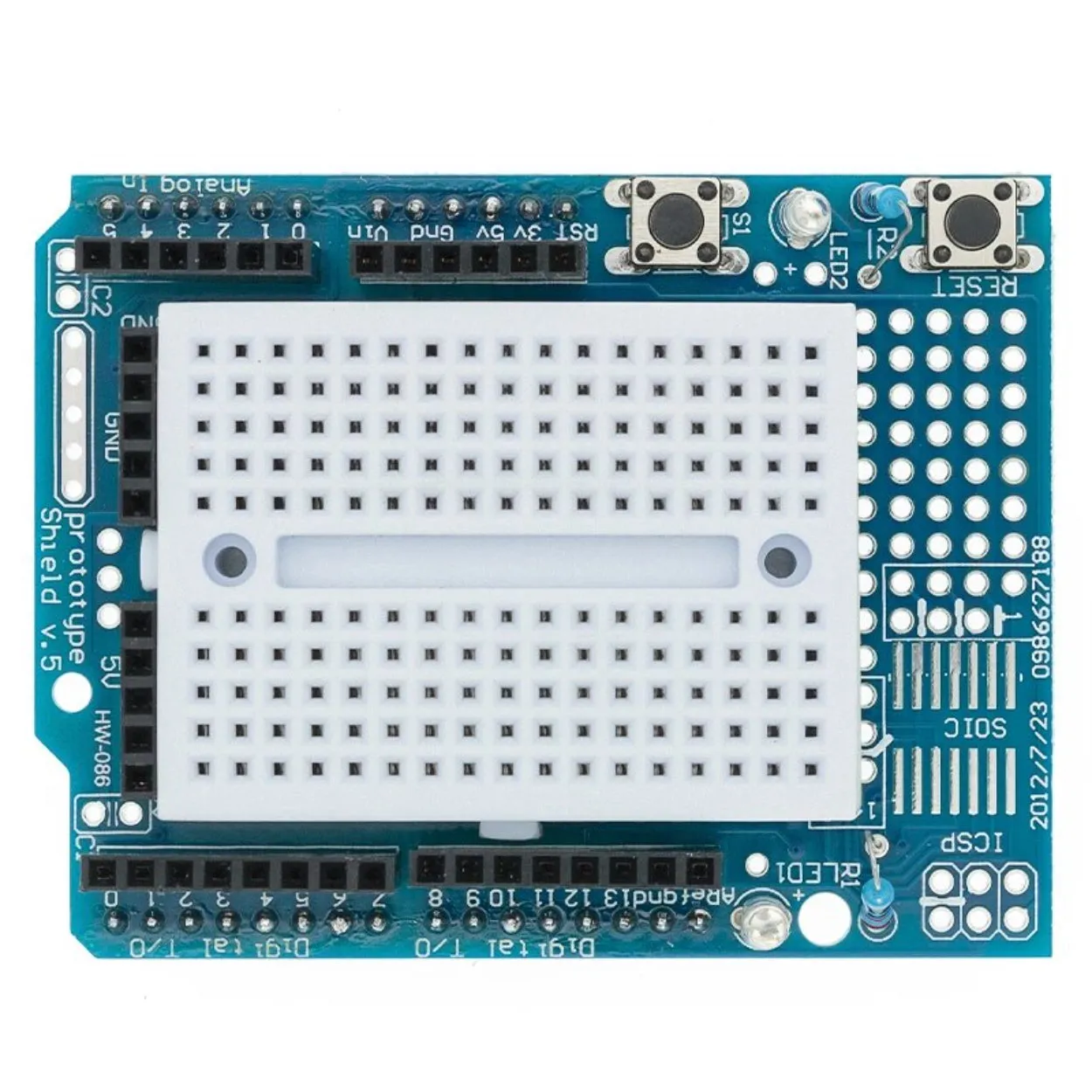

The Prototyping Prototype Proto Shield with a 170 Mini Breadboard is a versatile hardware component used in electronics prototyping.

Below is a Description Highlighting its key Features:

Name: Prototyping Prototype Proto Shield 170 Mini Breadboard
SKU: 2259356

Proto Shield Features: Arduino Boards: The Proto Shield is designed to fit onto Arduino boards, providing a convenient platform for prototyping and connecting additional electronic components.

Soldering Pads: It typically includes a perforated area with soldering pads, allowing users to solder and connect components directly to the shield.

Extended Pins: The shield usually extends the pins of the Arduino board, making it easy to stack additional shields or modules.

Built-in LEDs and Buttons: Some Proto Shields come with built-in LEDs and buttons for basic input and output testing during prototyping.

Mini Breadboard Features:

Compact Design: The included mini breadboard is compact, making it suitable for small projects and fitting within the constraints of the Proto Shield.

170 Tie Points: With 170 tie points (or holes), the mini breadboard provides ample space for connecting and testing various electronic components.

Adhesive Back: The mini breadboard often comes with a self-adhesive backing, allowing users to easily attach it to the Proto Shield or other surfaces.

Flexible Wiring: Users can use jumper wires to connect components on the mini breadboard, offering a flexible and temporary way to test different circuit configurations.

Reusable: Mini breadboards are reusable, allowing for quick iterations and modifications to the circuit without the need for soldering.

Technical Details

It has a nice standard 0.1″x0.1″ prototyping grid with big pads
Comes with Stacking headers and plain header, choose whichever you want when soldering together
An IC pattern for adding DIP ICs up to 20 pins
Power rails down the middle and sides
A reset button and an extra general use button
Two 3mm general use LEDs, red and green, as well as 2 matching resistors

Physical Attributes

L x W x H (mm): 70 x 54 x 20
Weight (gm) : 30

Features

It has a nice standard 0.1″x0.1″ prototyping grid with big pads
Comes with Stacking headers and plain header, choose whichever you want when soldering together
An IC pattern for adding DIP ICs up to 20 pins
Power rails down the middle and sides
A reset button and an extra general use button
Two 3mm general use LEDs, red and green, as well as 2 matching resistors
A pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmer
A surface-mount chip area for up to 14 SOIC size parts
Compatible with tiny breadboards
Every pin is brought out!
Gold plated pads
2 x 0.1uF capacitors on either side for extra power stability
