Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |

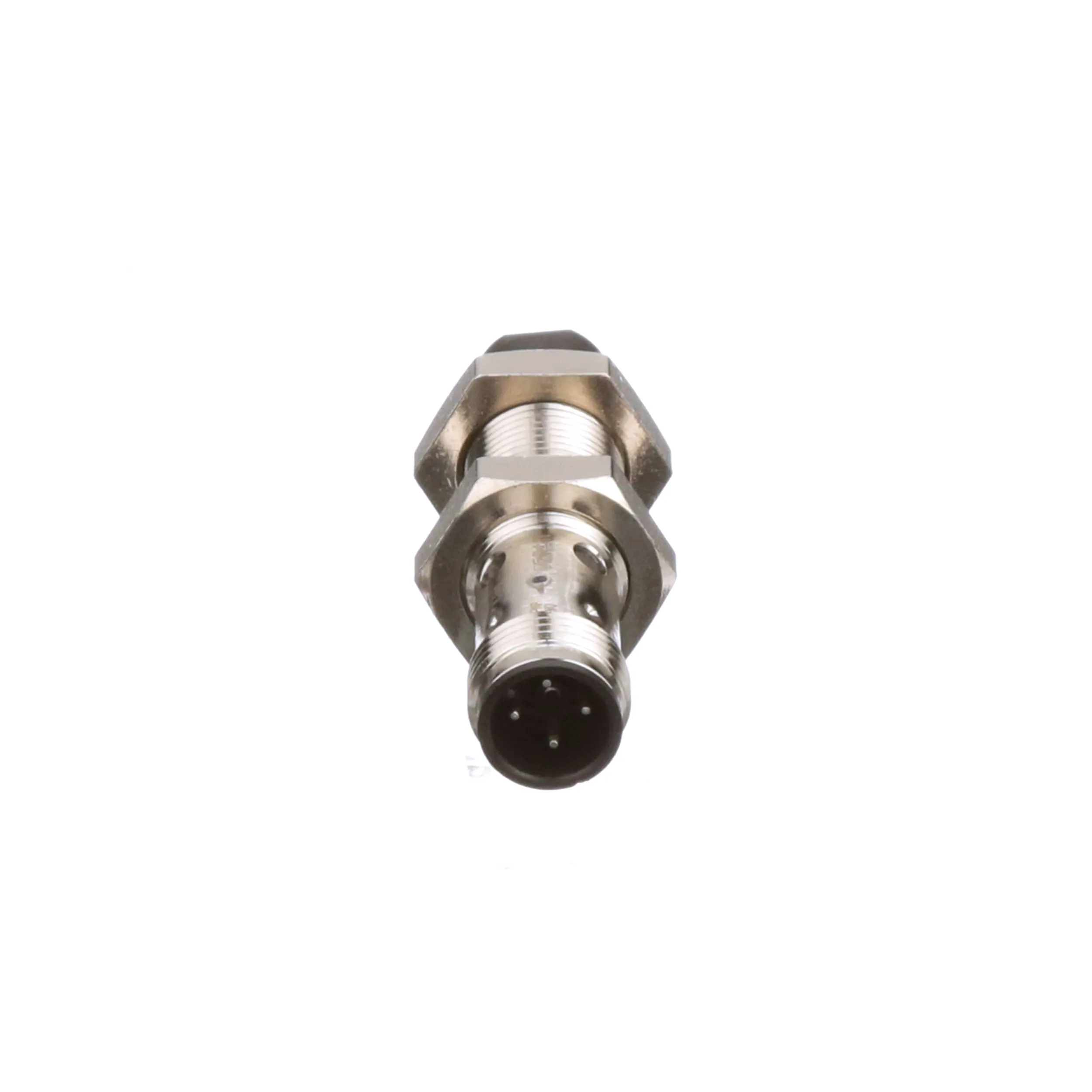

| Connection Type | M12 4-Pin |
| Frequency, Switching | 0.8 kHz |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 8 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M12 Threaded Non-Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP-NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 10-30 VDC |
Overview

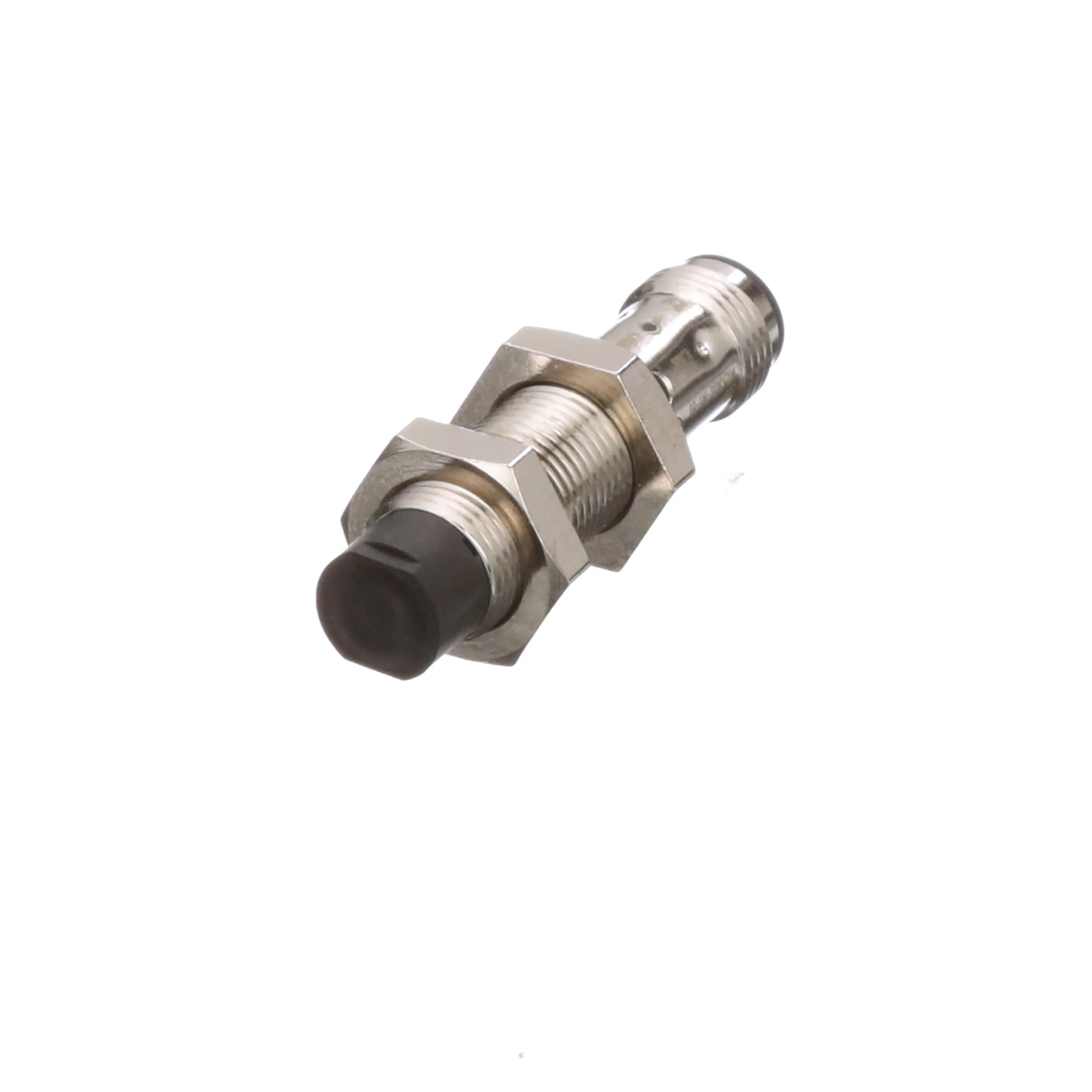

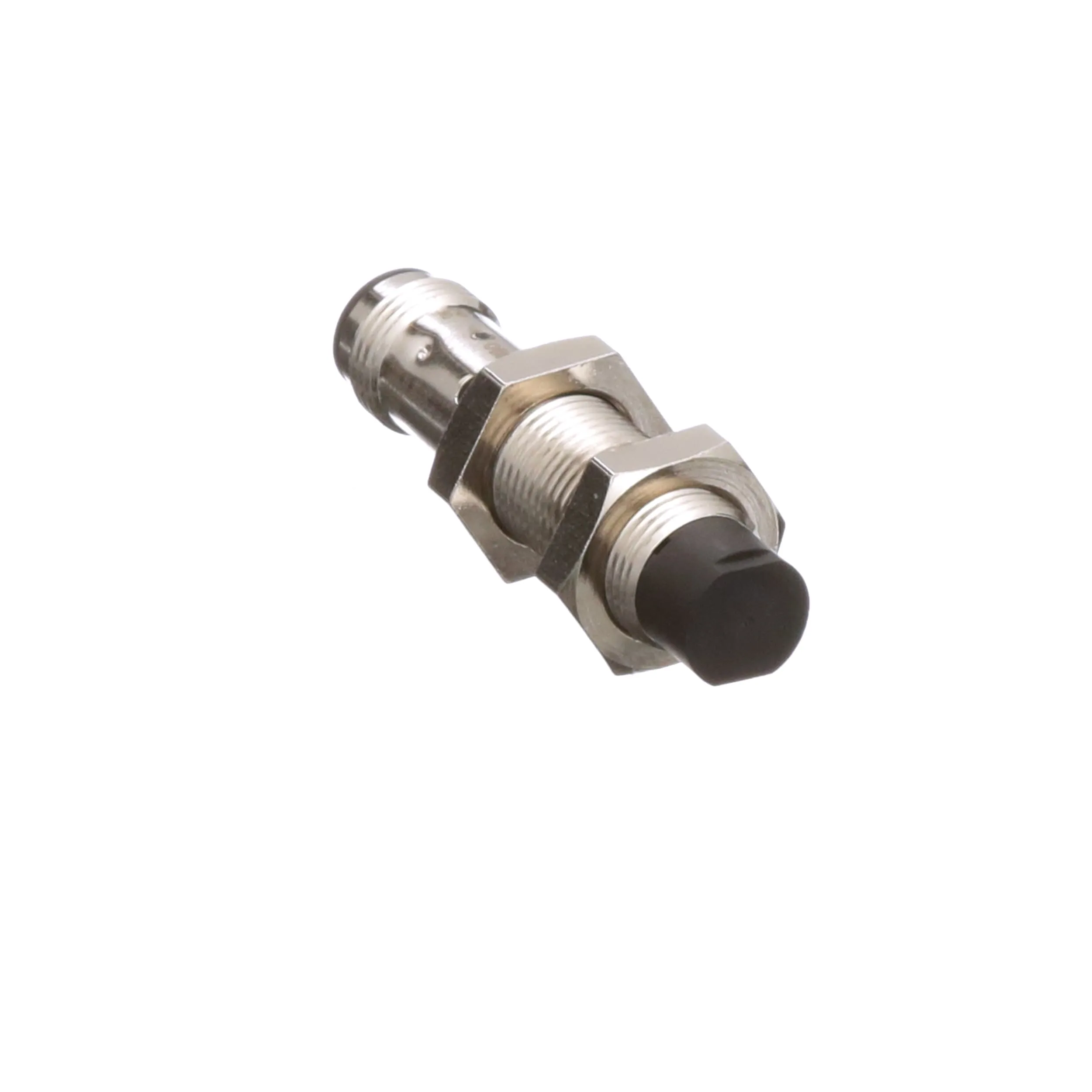

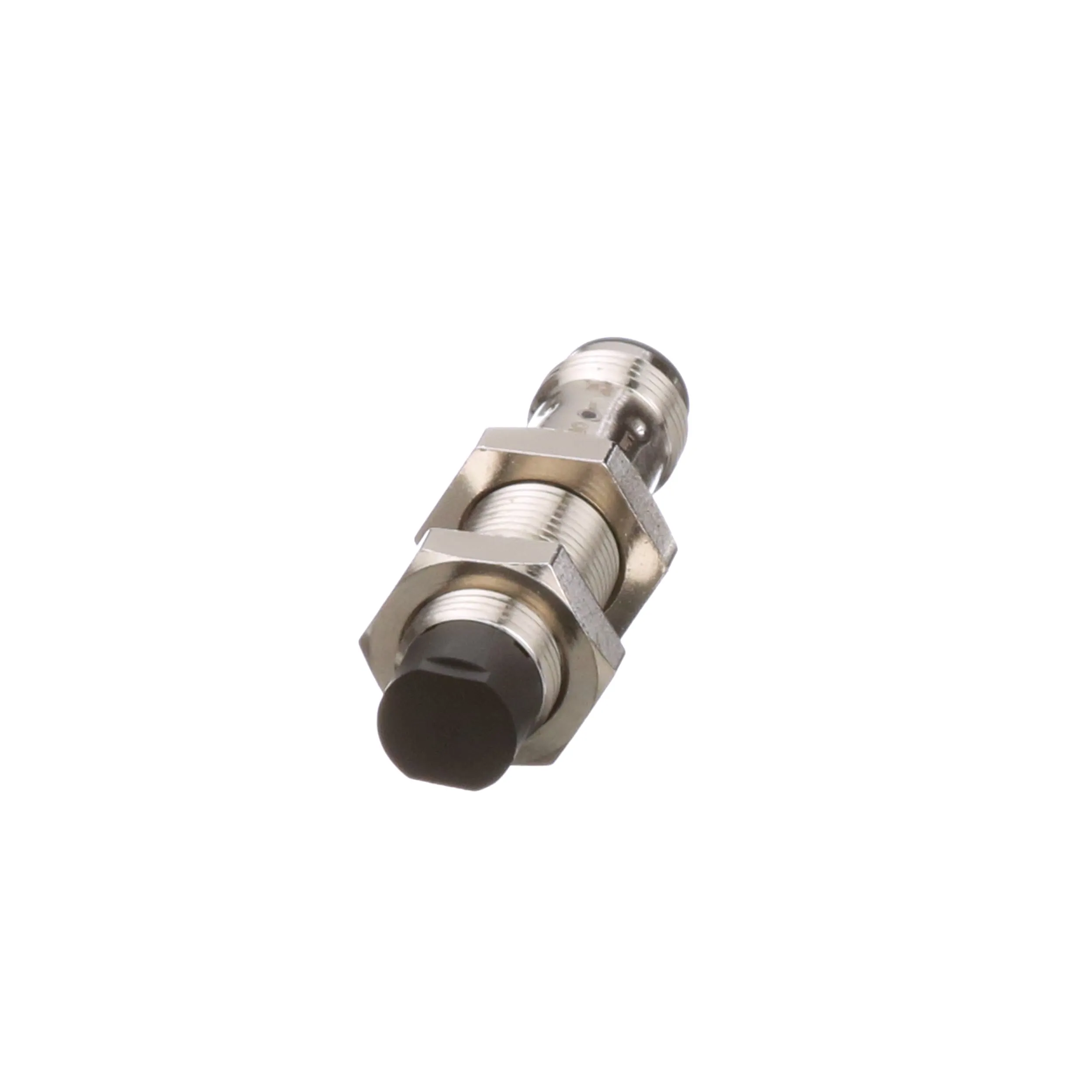

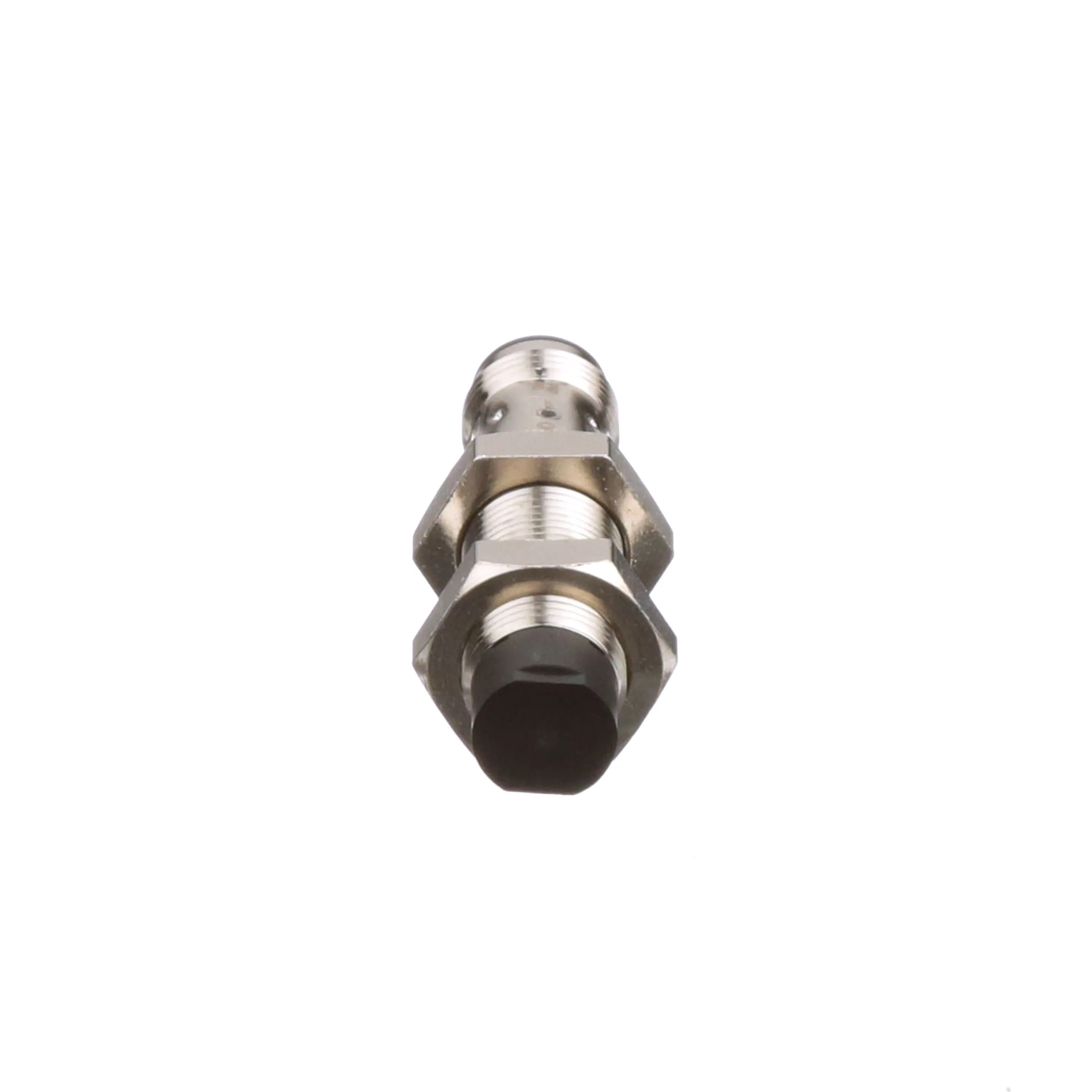

E2B Brass Standard Length
The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.
