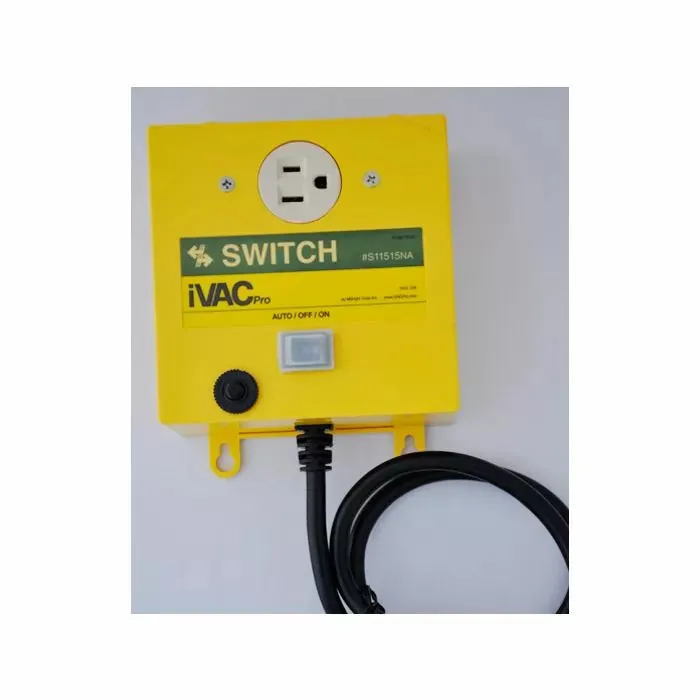

iVAC Automated Dust Collection - Switch (For Your Dust Collector)

Automated Dust Control for your Safety & Convenience. Used as a component of the iVAC Pro System. The iVAC Pro Switch modules are used to automatically turn on your Dust Collector or Shop Vac when you turn on a power tool plugged into an iVAC Pro Tool module such as a table saw, mitre saw, sander, etc. The dust collector will be connected to an iVAC Pro Switch module.

Features

• Three Modes of operation. Auto – Off – On
• Four System addresses. Programmable
• Turn On Delay
• Turn Off Time – Programmable
• Master Reset

Specification

• Voltage is 115Vac
• Current capacity is 20Amps
• Circuit breaker is rated at 20Amps
• Typical Motor drive capability
  1HP at 115Vac
• Input power cord is 30” with the respective NEMA straight blade plug
• Output power receptacle is the respective NEMA straight blade receptacle
• Turn ON Delay 0 or 1.5 seconds
• Turn Off Time 0, 5, 15 or 45seconds
• Range, 40’ line of sight
• Maximum ambient operating temperature, 30C
• Regulatory approval
  TUV certification to UL60950-1 and CSA 60950-

We strongly recommend the use of the for dust collectors operating on 115Vac rated over 1HP and for any dust collector over 1.5HP operating on 230Vac.
