Name: [EOL] Mini Development Kit ESP32 1.3'OLED
SKU: 1182117

Product Details ＋

Description

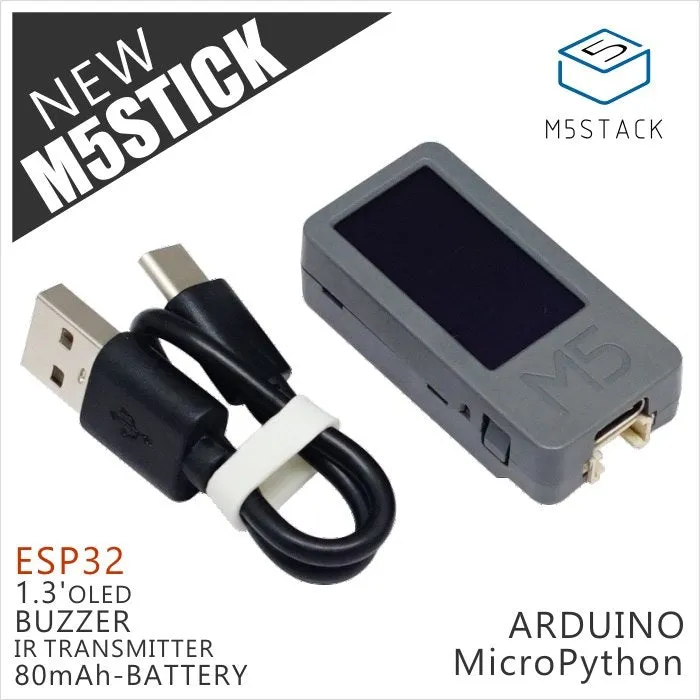

M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.M5stick is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.

This product is EOL now, we've released the updated version which is fully compatible with this product.

Power on / off:

Power on: Click the reset button
Shutdown: Double the reset button

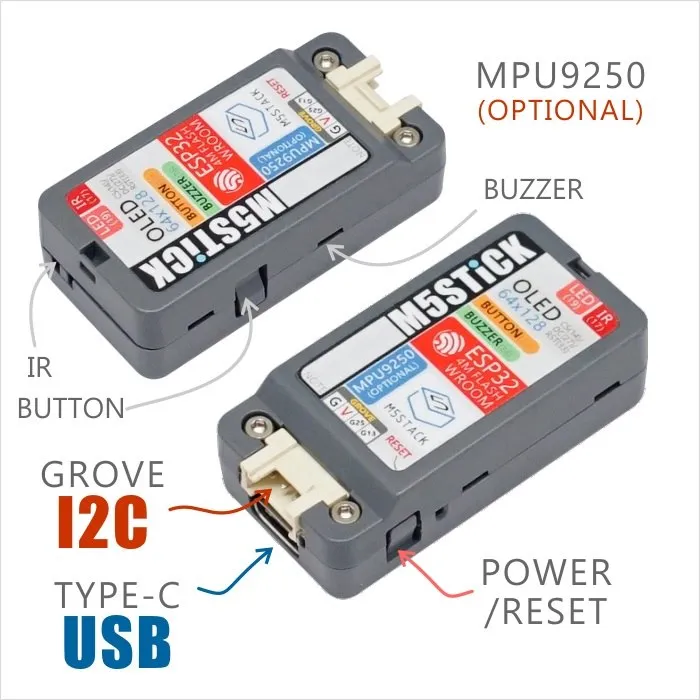

Product Features

ESP32-based
Bulit-in 9-Axis IMU
Blue LED
Buzzer
IR transmitter
Buttons, OLED(1.3 inch)
Lipo Battery
Extendable Socket
Wearable & Wall mounted
Development Platform

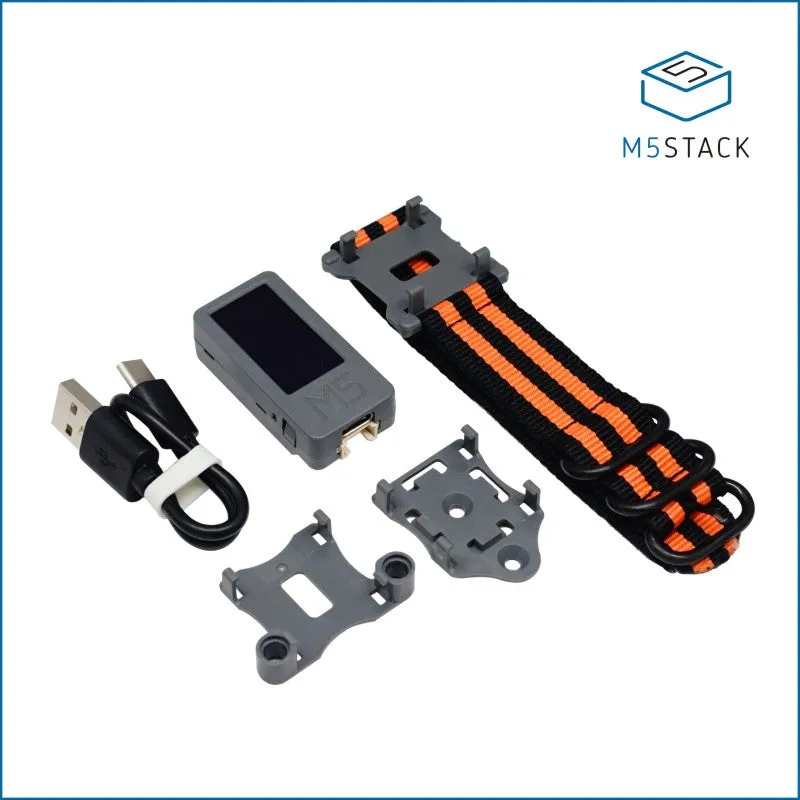

Include

1x M5Stick
1x USB Type-C(20cm)

Applications

Wearable devices
Internet of things terminal controller
DIY creation

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C I/0 UART) x 1
OLED Screen	1.3 inch, 64 x 128, SH1107
Button	Custom button x 1
LED	Blue LED x 1
Buzzer	Piezo buzzer
MEMS	MPU9250(Gray version)
IR	Infrared transmission
Battery	80 mAh @ 3.7V
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	48.2 x 25.5 x 13.7mm
Weight	14g
Case Material	Plastic ( PC )
