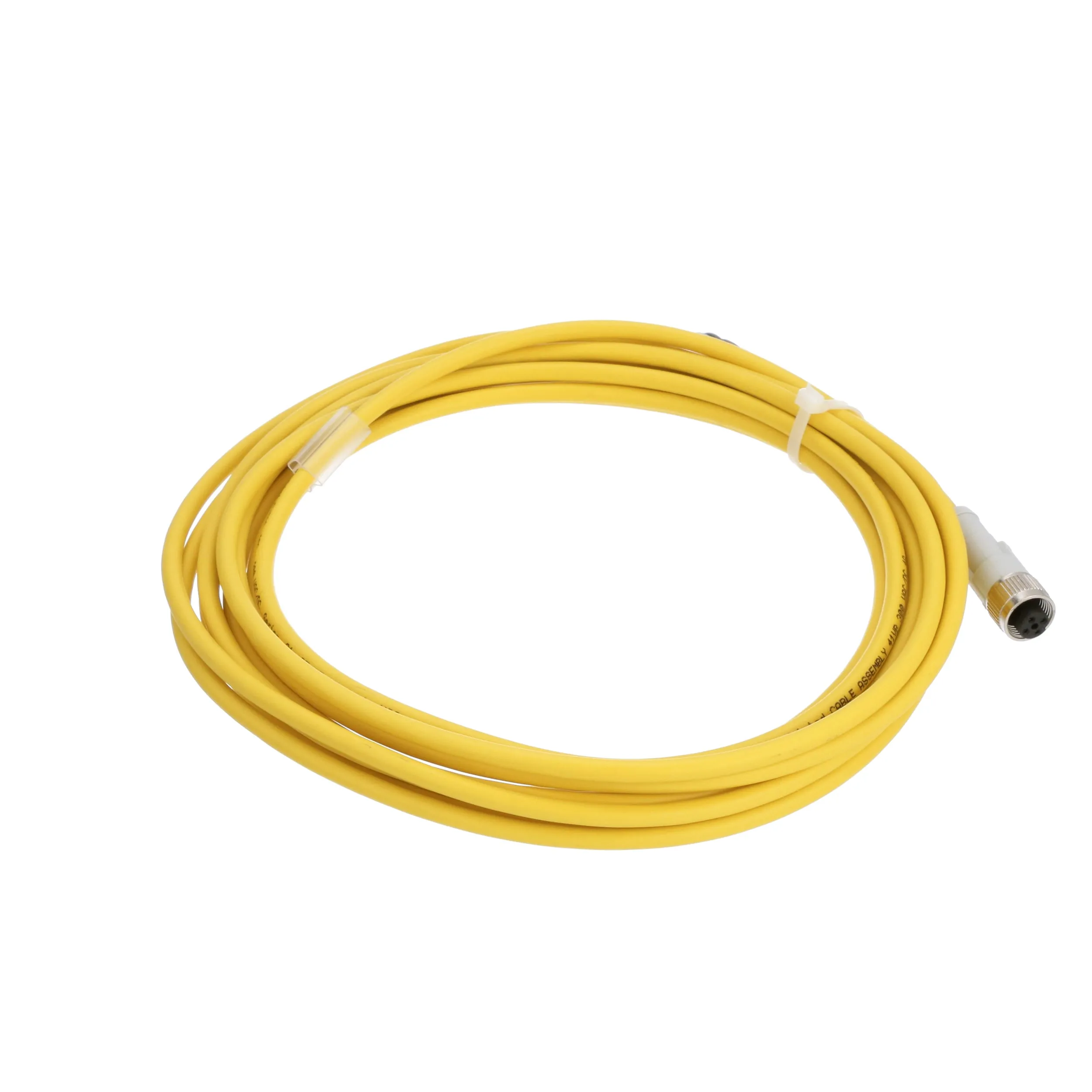

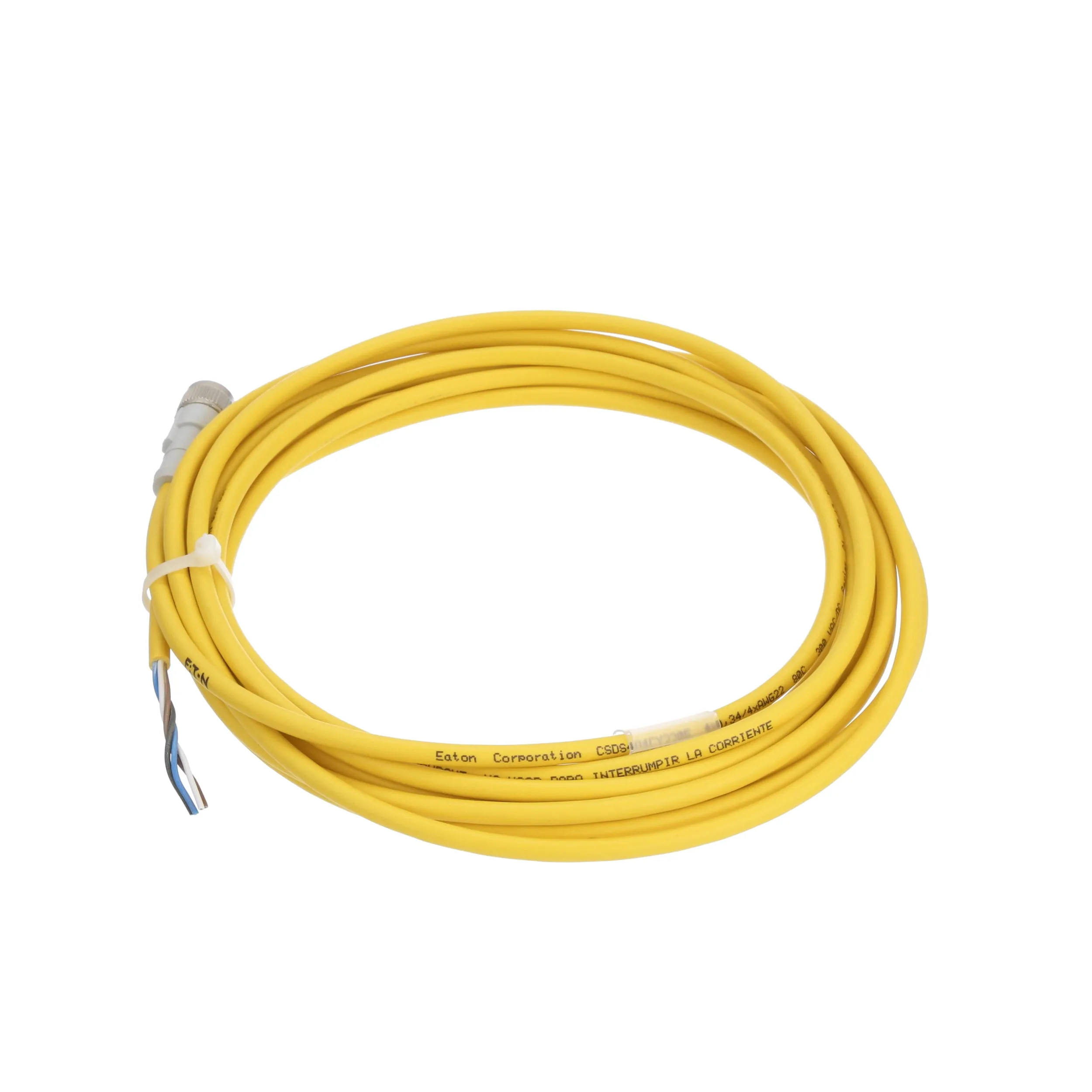

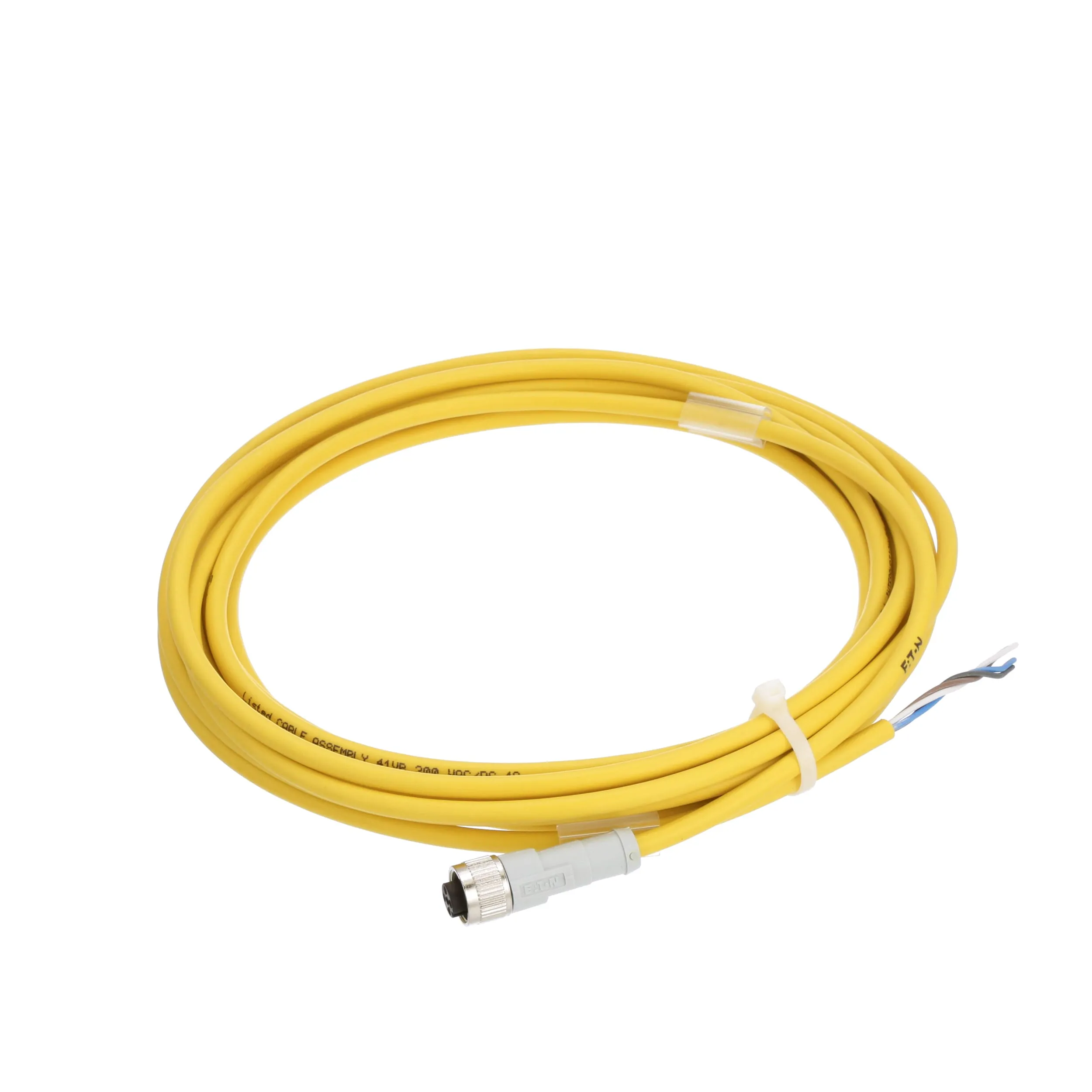

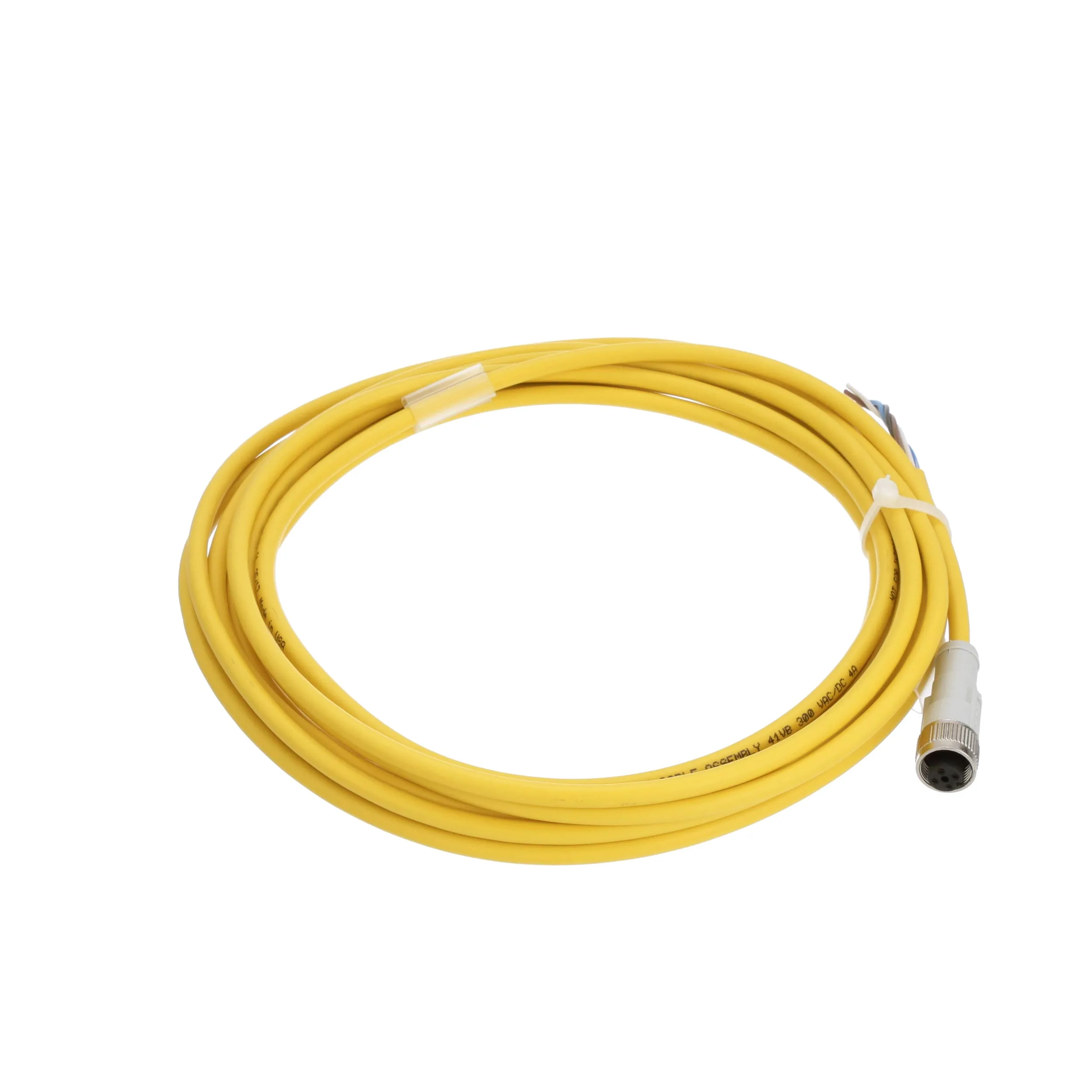

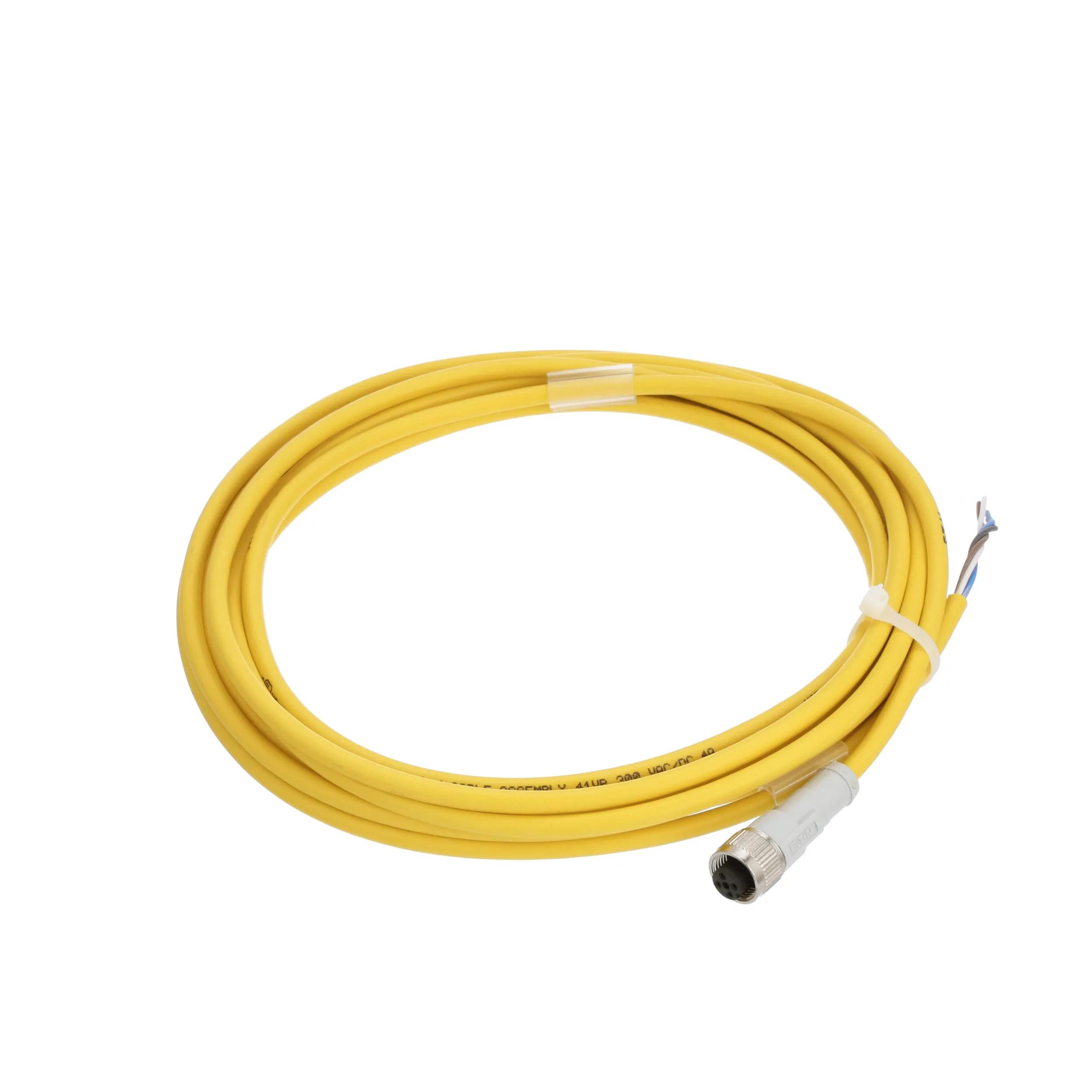

| Product Attribute | Attribute Value |
|---|---|
| Cable Length | 5 m(16.4 ft.) |
| Connection | Micro-style straight female |
| Cord Length | 196.8 Foot |
| Height | .58 Inch |
| Input Voltage | 320V |
| Jacket Color | Yellow |
| Length | 196.8 Inch |
| Number of Pins | 4 pin |
| Number of Wires | 4-wire |
| Primary Type | Cable |
| Series | |
| Switch Type | Sensor connectivity |
| Type | Accessory |
| UPC Code | 782116056828 |
| Width | .58 Inch |
| Wire Size | #22 AWG |
Overview
The Cutler-Hammer® E56 Pancake from Eaton's electrical business is a high performance inductive proximity sensor. The E56 Pancake provides greater sensing ranges than other inductive sensor package types. The E56 Pancake family provides convenience and ease of wiring with auto-configurable, complementary outputs. (Auto-configurable outputs automatically detect an NPN or PNP output configuration and switch the sensor accordingly, without user intervention.) Power and output LEDs make troubleshooting much easier than conventional proximity sensors, which usually only feature output LEDs. These convenience features, combined with the performance of the E56 Pancake, make it an excellent inductive sensing solution for applications requiring an extremely rugged, long range sensing solution.
