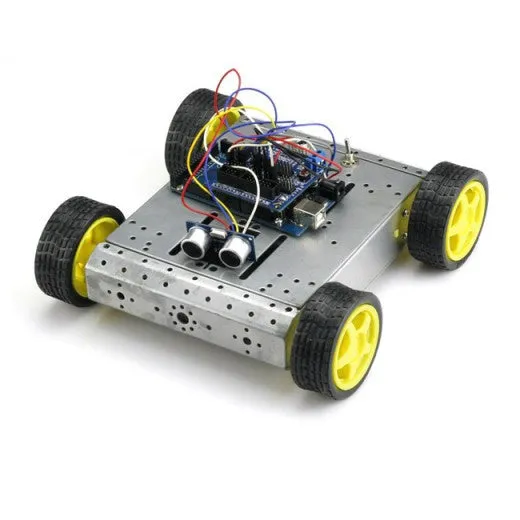

Name: [Discontinued] 4WD Robot Car Kit with Mega 2560
SKU: 1213809

Product Details ＋

Here’s your content with all headings changed to H3 for consistency and clarity: ---

DESCRIPTION

Build Your Own Controlled Robot (Code Provided):

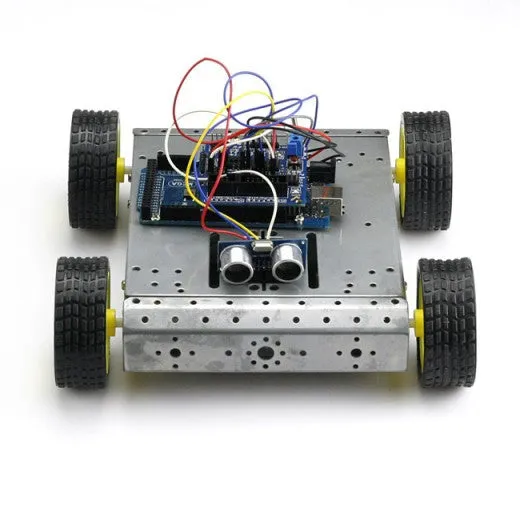

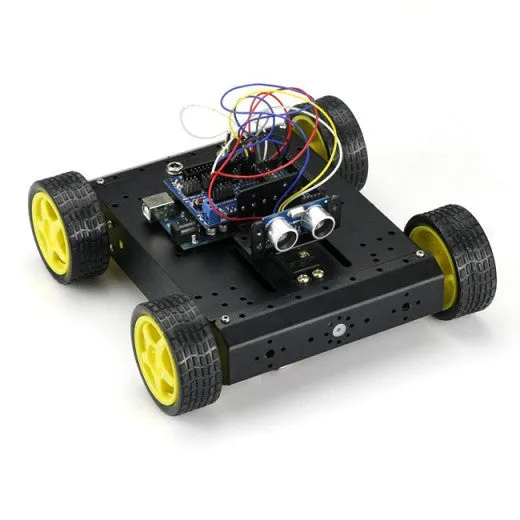

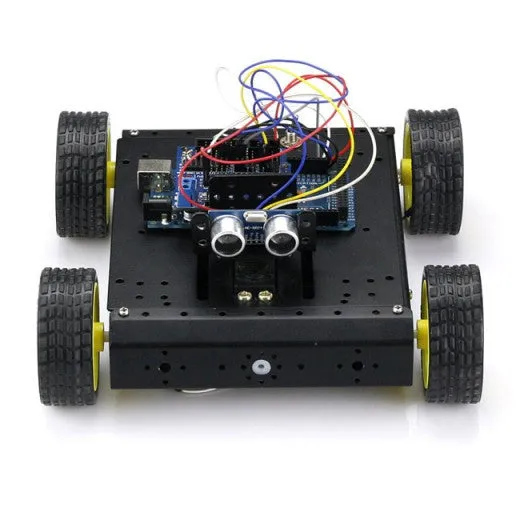

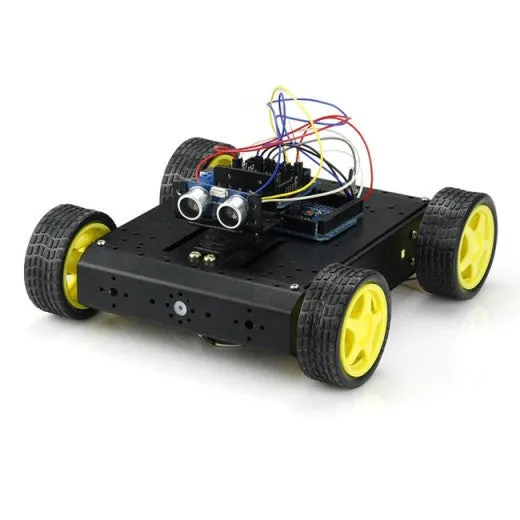

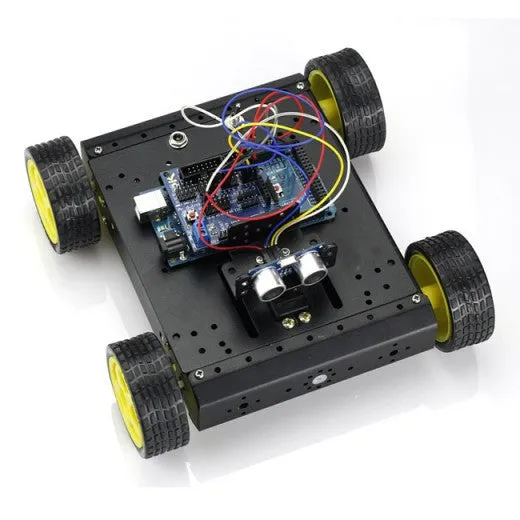

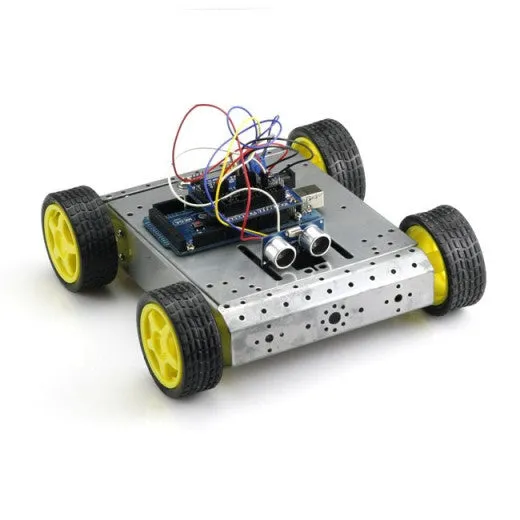

Robotics can be a difficult hobby to jump into, but our 4WD Robot Platform makes it easy for you to build an awesome robot without a struggle! By utilizing components compatible with Arduino, this combo helps you learn the basics of robotics, coding applications, and the process of building something impressive to show your family and friends. This can also be a fun toy!

This combo encourages creative thinking. If you are good at programming, you can make it a remote-controlled car or an autonomous robot by adding some sensors or a webcam as you prefer!

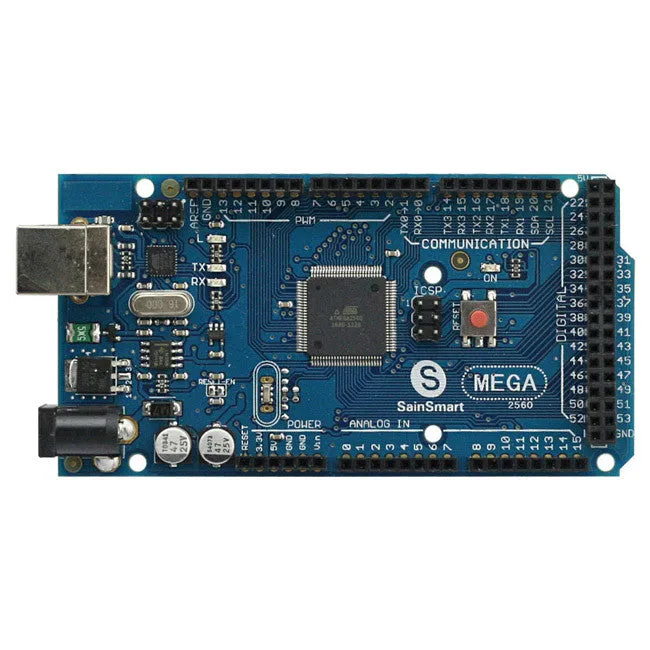

SainSmart MEGA 2560 Board for Arduino: This is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

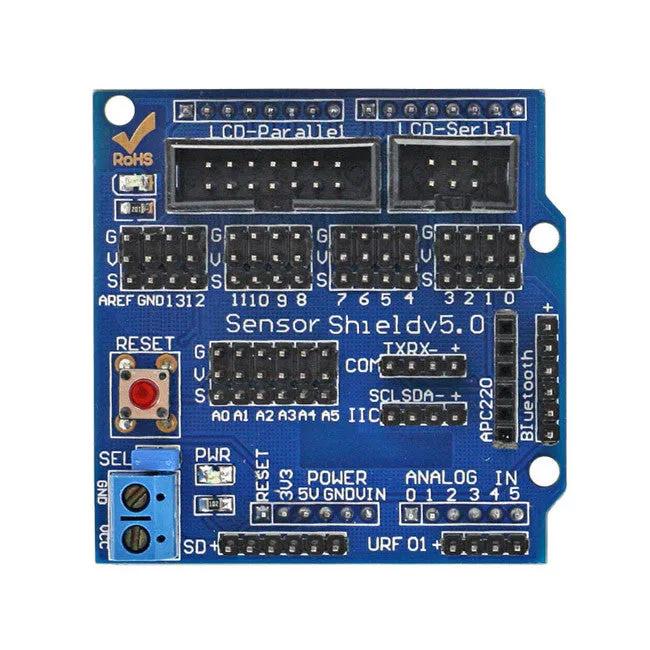

SainSmart Sensor Shield V5 (new version) has the COM and I2C (IIC) ports separated, allowing both ports to be utilized simultaneously to increase the possibilities of use. The Sensor Shield for Arduino allows you to connect to various modules like sensors, servos, relays, buttons, and potentiometers. Just plug & play! Each functional module has a buckled port with VCC, GND, and Output, which corresponds to the Sensor Shield. You may start playing right away with a plain 2.54mm dual-female cable.

Reduction ratio	1:48
No-load speed	220rpm
Wheel diameter	65mm
Wheel width	26mm
Platform length	206mm
Platform width	200mm
Platform height	62mm
Platform weight	620g

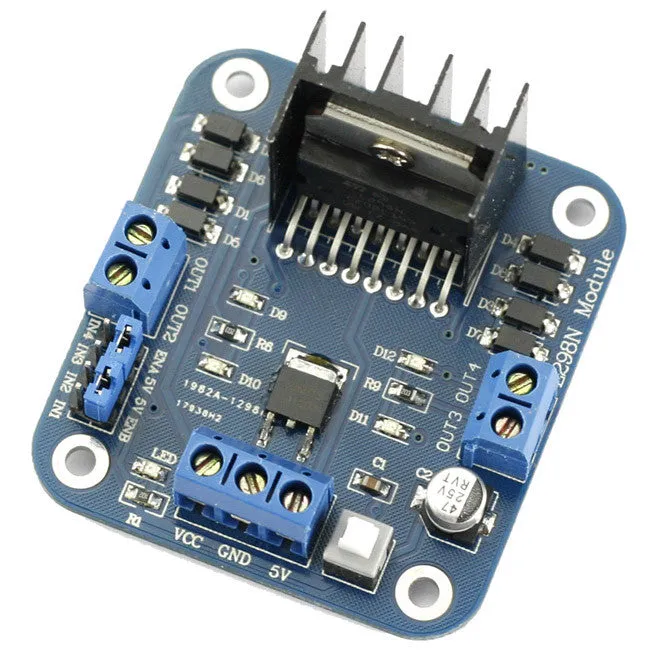

SainSmart L298N Dual H Bridge DC Motor Driver:

Driver: L298N Dual H Bridge DC Motor Driver IC
Terminal supply area for driven part Vs: 5 V ~ 35 V; if power is taken from the board, supply area Vs: 7V ~ 35V
Peak current of driven part Io: 2A
Terminal supply area for logical part Vss: 5 V ~ 7 V (can take power from the board 5 V)
Operating current range for logical part: 0 ~ 36mA

Control signal input voltage range:

Low: -0.3V ≤ Vin ≤ 1.5V
High: 2.3V ≤ Vin ≤ Vss

Enable signal input voltage range:

Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
High: 2.3V ≤ Vin ≤ Vss (control signal active)

Maximum power consumption: 20W (when the temperature T = 75 °C)
Storage temperature: -25 °C ~ 130 °C
Driver Board Size: 55mm * 49mm * 33mm (including fixed copper pillar and heat sink height)
Driver Board Weight: 33g
Other Extensions: control of direction indicators, the logic part of the board to take power interface.

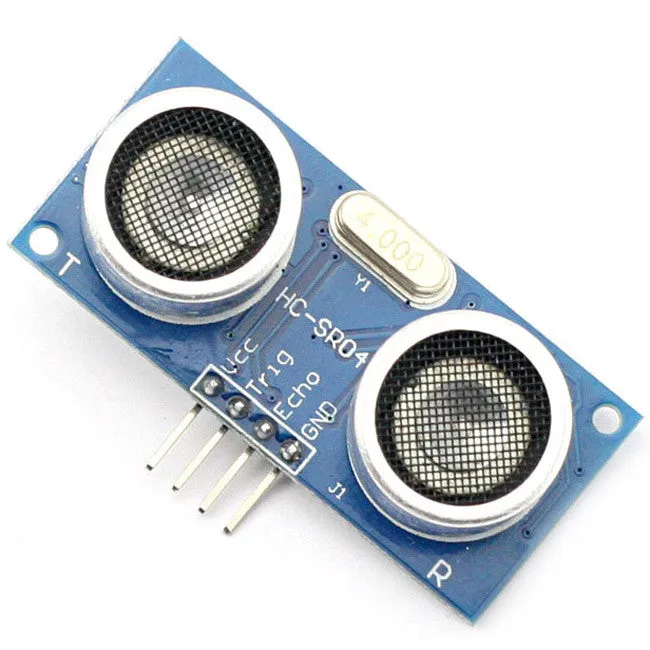

SainSmart Ultrasonic HC-SR04 Distance Sensor:
