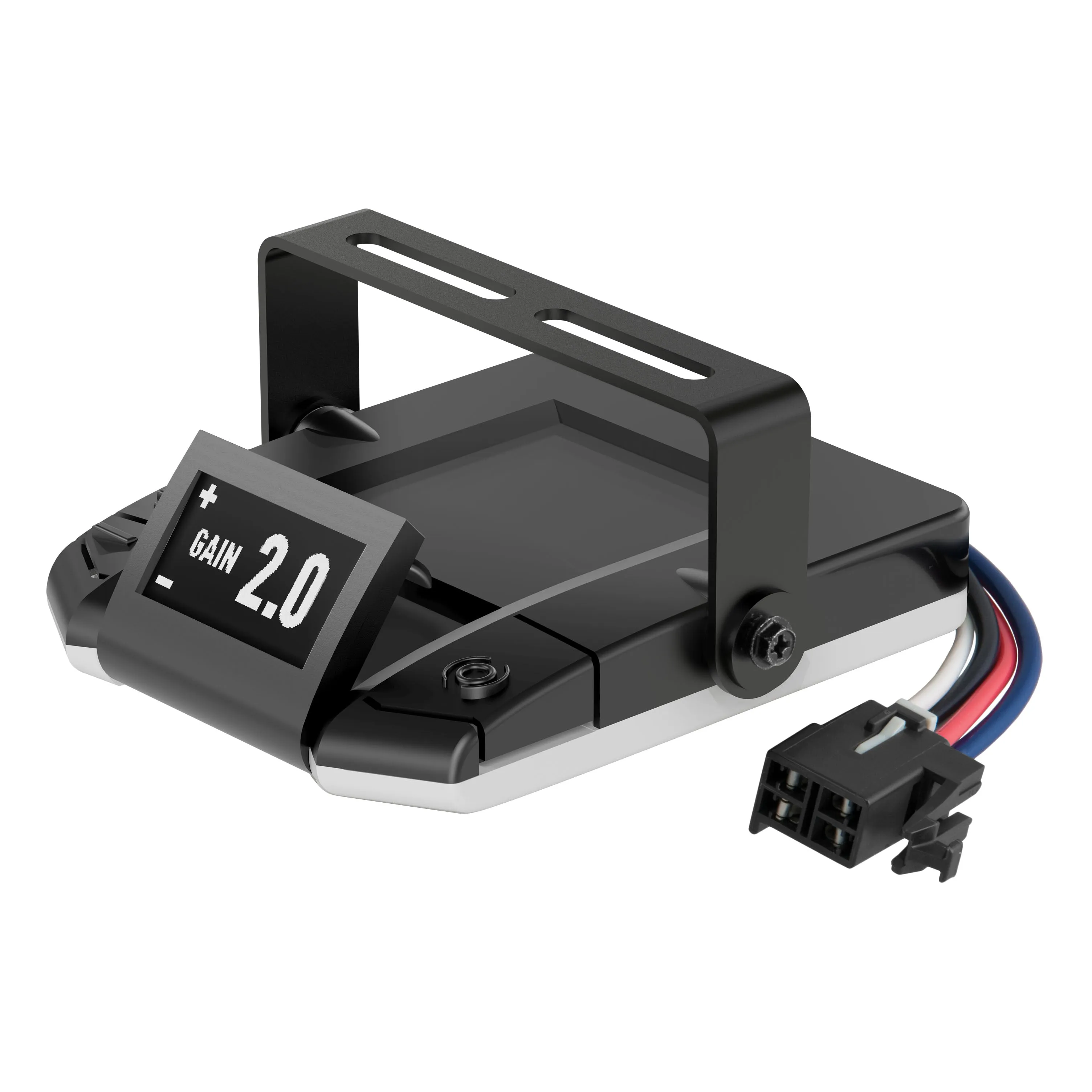

The CURT Assure brake control comes with a pressure-sensitive manual override button, a 1-1/2" wide OLED display and a triple-axis motion-sensing accelerometer, all to empower your adventure and provide smooth, responsive stops every time. The triple-axis accelerometer lays the foundation for this advanced electric brake controller, detecting the inertia of the vehicle and trailer on any grade. This means that whether you are going up or down a hill, the Assure is able to produce the exact amount of brake power needed, compensating for the angle and motion of the vehicle. The accelerometer also responsively adjusts this braking power as the vehicle slows down, putting the least amount of stress possible on your vehicle and trailer. The Assure trailer brake controller also features a high-quality OLED screen, displaying brake activity and providing an interface for the driver to control and monitor the trailer brakes. The display offers a clear picture with its 128 x 64 dot matrix screen, and the display can be tilted up for a clear visibility, whether the brake control is mounted above or below the dash. The manual override of the Assure allows brake pressure to be applied any time and in any amount. This can be used to help slow the vehicle down or correct trailer sway. The override button is pressure sensitive, giving you complete control over the trailer brake power. The CURT Assure can be used with two to eight trailer brakes, and it is compatible with ABS, cruise control, low-voltage systems and PWM systems. It has built-in reverse-polarity and short-circuit protectors, as well as low voltage and trailer disconnect indicators. Like all CURT brake controls, the Assure trailer brake controller installs using one of our vehicle-specific quick plug harnesses. It also comes with mounting hardware for a complete installation and is backed by a limited lifetime warranty.

Resources

Specifications:

Activation	Tri-axis inertia
Axles	1-4
Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Description_ABR	CNTRL
Description_ASC	Assure Proportional Trailer Brake Controller with Dynamic Screen
Description_ASC	Auto sleep mode prevents battery drain
Description_ASC	Automatic leveling and calibration eliminate setup requirements
Description_ASC	Built-in reverse-polarity and short-circuit protection
Description_ASC	Compatible with low-voltage systems, PWM systems, ABS and cruise control
Description_ASC	Diagnostic alerts notify of potential problems like low voltage or disconnect
Description_ASC	Display can be tilted for different mounting options, above or below the dash
Description_ASC	Large, high-quality 1-1/2" OLED screen displays full text readout
Description_ASC	Mounts at various angles, above or below the dash, to increase usability
Description_ASC	Nine levels of sensitivity adjustment for varying loads or driving conditions
Description_ASC	Operates 2-8 trailer brakes at a time (1-4 axles)
Description_ASC	Plug-and-play install with vehicle-specific quick plug harness (sold separately)
Description_ASC	Pressure-sensitive manual override button for precise braking power
Description_ASC	Sleek, low-profile design with tactile buttons
Description_ASC	Third axis provides dynamic power adjustments when going up or down a hill
Description_ASC	Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
Description_ASC	User-selectable power output and trailer brake light activation
Description_ASM	CURT 51160 Assure Electric Trailer Brake Controller with Dynamic Screen and Full Text Readout, Proportional
Description_DEF	Trailer Brake Control
Description_DES	Assure Proportional Trailer Brake Controller with Dynamic Screen
Description_EXT	CURT 51160 Assure Electric Trailer Brake Controller with Dynamic Screen and Full Text Readout, Proportional
Description_EXT	CURT 51160 Assure Electric Trailer Brake Controller with Dynamic Screen and Full Text Readout; Proportional
Description_FAB	Diagnostic Alerts Notify Of Potential Problems
Description_FAB	Display Can Be Tilted For Different Mounting Options
Description_FAB	Large High-Quality 1-1/2in. OLED Screen Displays Text Readout
Description_FAB	Pressure-Sensitive Manual Override Button
Description_FAB	Sleek Low-Profile Design w/Tactile Buttons
Description_FAB	Third Axis Provides Dynamic Power Adjustments
Description_FAB	Triple-Axis Motion-Sensing Accelerometer For Highly Responsive
Description_INV	Assure Trailer Brake Controller
Description_KEY	axle parts camper wire kit kits towing farming pickup truck electronic e ram wiring ford tow module break electronics battery box actuator pro dodge system hydraulic aftermarket mopar drive alert tek pod assist gm controls custom user mechanism
Description_LAB	Proposition 65
Description_MKT	The CURT Assure brake control comes with a pressure-sensitive manual override button, a 1-1/2" wide OLED display and a triple-axis motion-sensing accelerometer, all to empower your adventure and provide smooth, responsive stops every time. The triple-axis accelerometer lays the foundation for this advanced electric brake controller, detecting the inertia of the vehicle and trailer on any grade. This means that whether you are going up or down a hill, the Assure is able to produce the exact amount of brake power needed, compensating for the angle and motion of the vehicle. The accelerometer also responsively adjusts this braking power as the vehicle slows down, putting the least amount of stress possible on your vehicle and trailer. The Assure trailer brake controller also features a high-quality OLED screen, displaying brake activity and providing an interface for the driver to control and monitor the trailer brakes. The display offers a clear picture with its 128 x 64 dot matrix screen, and the display can be tilted up for a clear visibility, whether the brake control is mounted above or below the dash. The manual override of the Assure allows brake pressure to be applied any time and in any amount. This can be used to help slow the vehicle down or correct trailer sway. The override button is pressure sensitive, giving you complete control over the trailer brake power. The CURT Assure can be used with two to eight trailer brakes, and it is compatible with ABS, cruise control, low-voltage systems and PWM systems. It has built-in reverse-polarity and short-circuit protectors, as well as low voltage and trailer disconnect indicators. Like all CURT brake controls, the Assure trailer brake controller installs using one of our vehicle-specific quick plug harnesses. It also comes with mounting hardware for a complete installation and is backed by a limited lifetime warranty.
Description_SHO	Assure Controller
Description_SHO	Assure Proportional
Description_SLA	The CURT Assure brake control comes with a pressure-sensitive manual override button, a 1-1/2" wide OLED display and a triple-axis motion-sensing accelerometer, all to empower your adventure and provide smooth, responsive stops every time. The triple-axis accelerometer lays the foundation for this advanced electric brake controller, detecting the inertia of the vehicle and trailer on any grade. This means that whether you are going up or down a hill, the Assure is able to produce the exact amount of brake power needed, compensating for the angle and motion of the vehicle. The accelerometer also responsively adjusts this braking power as the vehicle slows down, putting the least amount of stress possible on your vehicle and trailer. The Assure trailer brake controller also features a high-quality OLED screen, displaying brake activity and providing an interface for the driver to control and monitor the trailer brakes. The display offers a clear picture with its 128 x 64 dot matrix screen, and the display can be tilted up for a clear visibility, whether the brake control is mounted above or below the dash. The manual override of the Assure allows brake pressure to be applied any time and in any amount. This can be used to help slow the vehicle down or correct trailer sway. The override button is pressure sensitive, giving you complete control over the trailer brake power. The CURT Assure can be used with two to eight trailer brakes, and it is compatible with ABS, cruise control, low-voltage systems and PWM systems. It has built-in reverse-polarity and short-circuit protectors, as well as low voltage and trailer disconnect indicators. Like all CURT brake controls, the Assure trailer brake controller installs using one of our vehicle-specific quick plug harnesses. It also comes with mounting hardware for a complete installation and is backed by a limited lifetime warranty.
Display	OLED Screen
Finish - XA	Black
height	2.63
Item Class - XA	CME
Item Height - XA	0.000
Item Length - XA	0.000
Item Width - XA	0.000
length	7.0
Level Adjust	Auto
LTL	N
Mount Angles	Various
Parcel Allowed - XA	Yes
Product Weight - XA	0.000
Rate Class - XA	70.0
Retail Height - XA	2.630
Retail Length - XA	7.000
Retail Width - XA	5.000
Shipping Weight - XA	2.000
Tariff 301 - XA	No
Title	Assure Proportional Trailer Brake Controller with Dynamic Screen
Warranty	Limited Lifetime
weight	2.0
width	5.0
