Product Details
＋

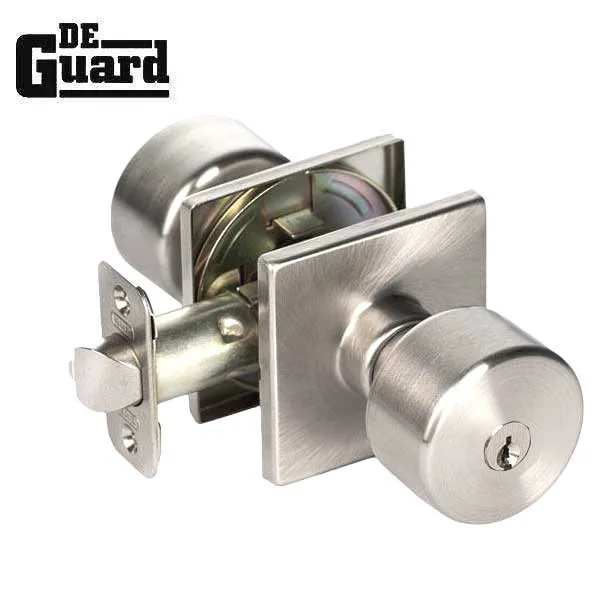

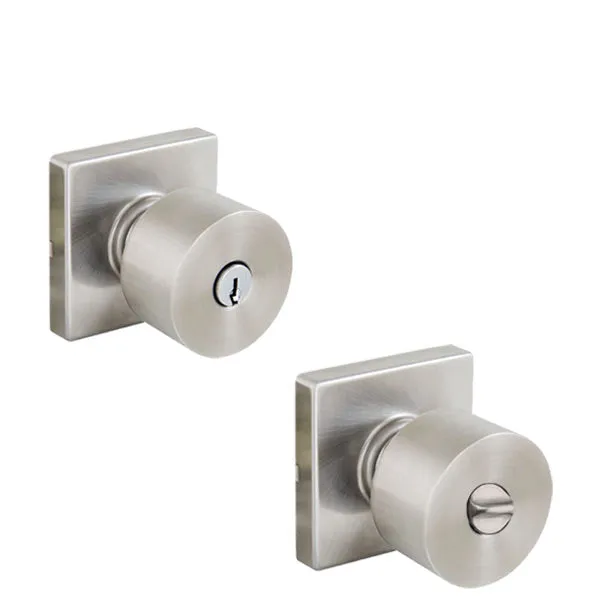

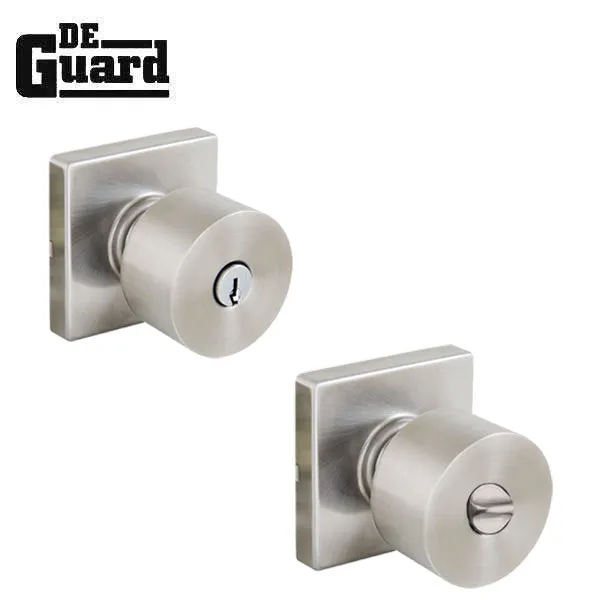

This Contemporary Flat Ball Door Knob Set is the perfect combination of beauty and security. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel. Furthermore, they are designed to fit most residential doors, have adjustable latches, and meet the uncompromising grading standards of the ANSI for residential and builders hardware.
Features
- Easy Installation: Only tool required is a screwdriver
- For use where keyed security is required
- Universal handing, fits both right handed and left handed doors
- Keyed Alike Up To 24 / KA24
- Latch features a square faceplate or can be easily converted to a drive-in style
Specifications
| Configuration | Knob Set |
| Assembled Depth (in.) | 2.41 in |
| Assembled Height (in.) | 2.63 in |
| Assembled Width (in.) | 2.63 in |
| Knob Cross bore diameter (in.) | 2.125 |
| Knob Diameter (in.) | 2.19 |
| Knob housing height (in.) | 2.625 |
| Knob housing width (in.) | 2.625 |
| Maximum door thickness (in.) | 1.75 |
| Minimum door thickness (in.) | 1.375 |
| Projection (in.) | 2.41 |
| Strike height (in.) | 2.25 |
| Strike width (in.) | 1.75 |
| Throw length (in.) | .5 |
| Function | Keyed Entry |
| Knob Style: | Flat Ball |
| Cylinder | Schlage SC1 keyway |
| Finish | 619 - Satin Nickel |
| Handing | Field Reversible |
| Backset | Adjustable for 2-3/4", 2-3/8" backset |
| Latch Faceplate | Square Corner |
| Door Thickness | 1-3/8" to 1-3/4" (35mm ~ 45mm) |
| Handle Length | 2.1875 in. |
| Manufacturer Warranty | Limited Lifetime Warranty |
| BHMA Certification | ANSI Grade 3 |
