Add Internet to your next project with an adorable, bite-sized WiFi microcontroller, at a price you like!
The ESP8266 processor from Espressif is an 80 MHz microcontroller with a full WiFi front-end (both as client and access point) and TCP/IP stack with DNS support as well. While this chip has been very popular, its also been very difficult to use. Most of the low cost modules are not breadboard friendly, don't have an onboard 500mA 3.3V regulator or level shifting, and aren't CE or FCC emitter certified....UNTIL NOW!

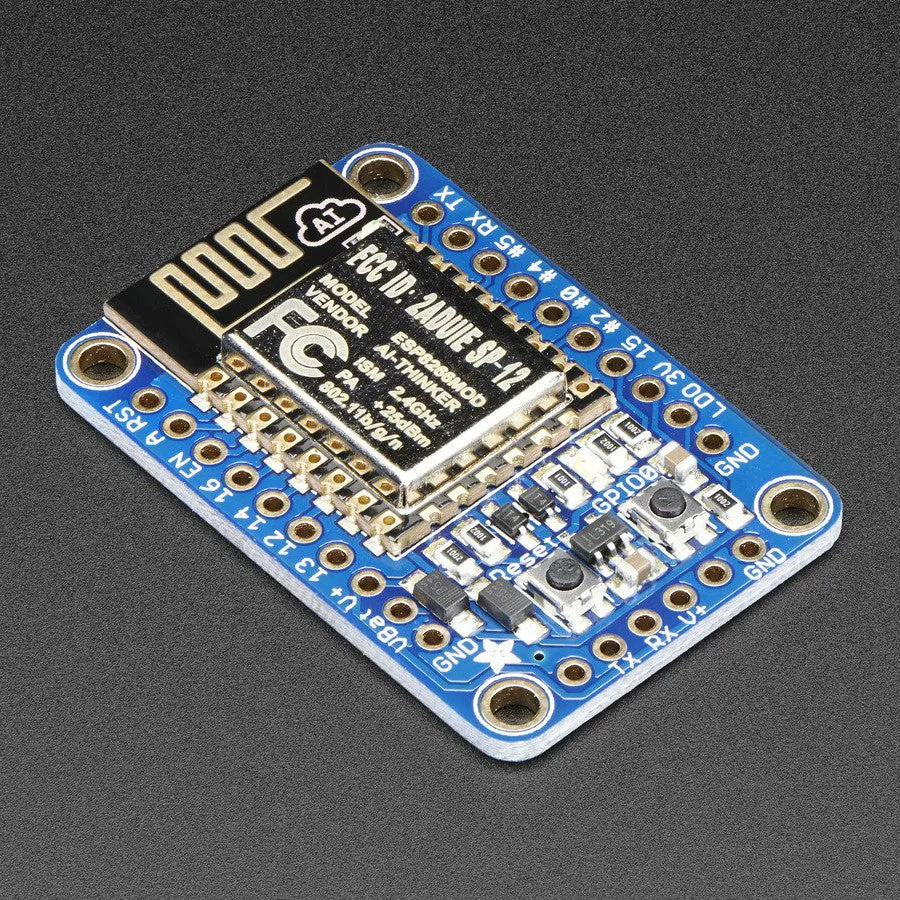

The Adafruit HUZZAH ESP8266 breakout is what Adafruit designed to make working with this chip super easy and a lot of fun. They took a certified module with an onboard antenna, and plenty of pins, and soldered it onto their designed breakout PCBs. They added in:
- Reset button,
- User button that can also put the chip into bootloading mode,
- Red LED you can blink,
- Level shifting on the UART and reset pin,
- 3.3V out, 500mA regulator (you'll want to assume the ESP8266 can draw up to 250mA so budget accordingly)
- Two diode-protected power inputs (one for a USB cable, another for a battery)
Two parallel, breadboard-friendly breakouts on either side give you access to:
- 1 x Analog input (1.8V max)
- 9 x GPIO (3.3V logic), which can also be used for I2C or SPI
- 2 x UART pins
- 2 x 3-6V power inputs, reset, enable, LDO-disable, 3.3V output

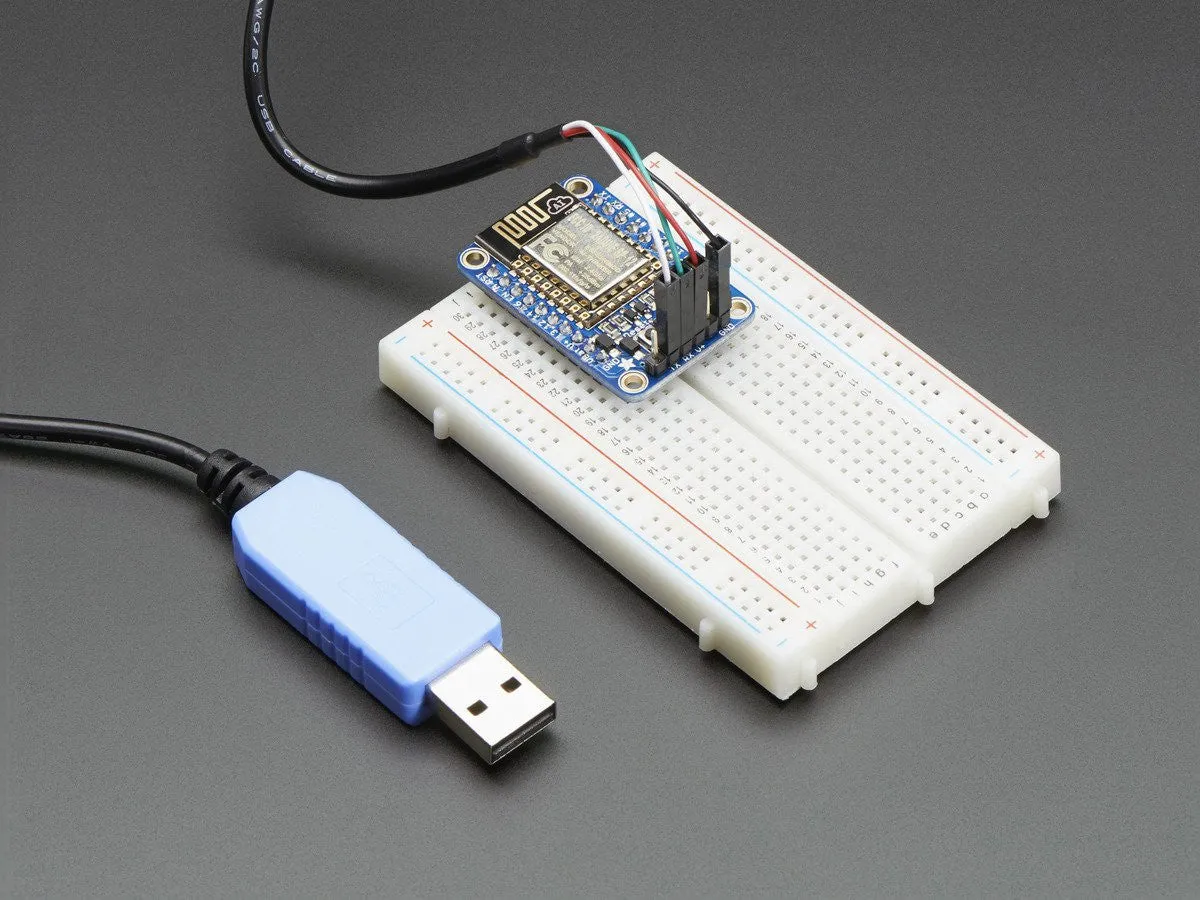

One breakout at the end has an "FTDI" pinout so you can plug in an FTDI or console cable to upload software and read/write debugging information via the UART. When you're done with your coding, remove the cable, and this little module can be embeded into your project box.
, you can run commands, and 'save' Lua programs directly to the module's Flash using a USB-Serial converter cable. But, if you'd like, you can skip Lua and !

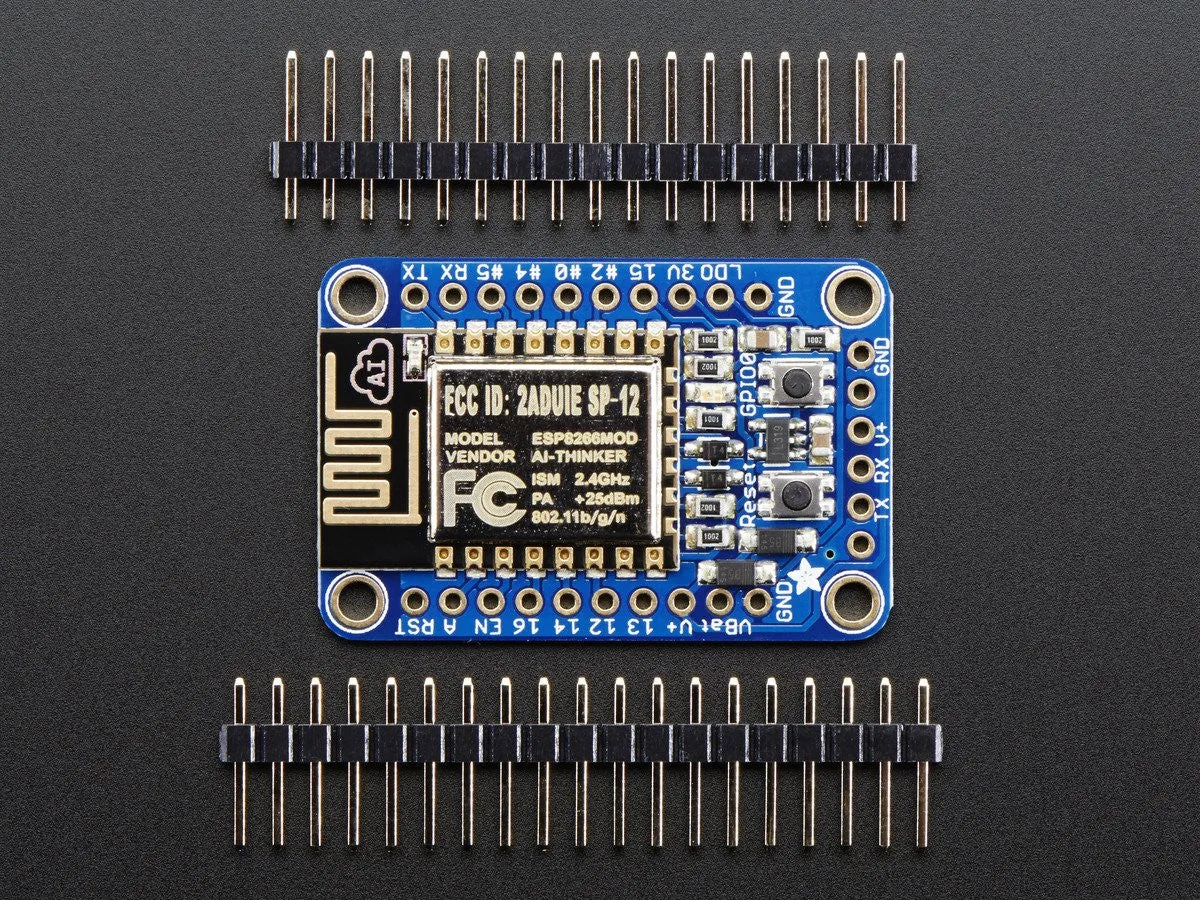

Each order comes with one assembled and tested HUZZAH ESP8266 breakout board, and a stick of 0.1" header that you can solder on and plug the breakout into a breadboard. A soldering iron and solder are required for that, and aren't included. also not included. You'll really want a USB-serial cable to upload software to the HUZZAH ESP8266!
TECHNICAL DETAILS
- Dimensions: 25mm x 38mm x 5mm / 1" x 1.5" x 0.2"
- Weight: 5g
- Pre-programmed with

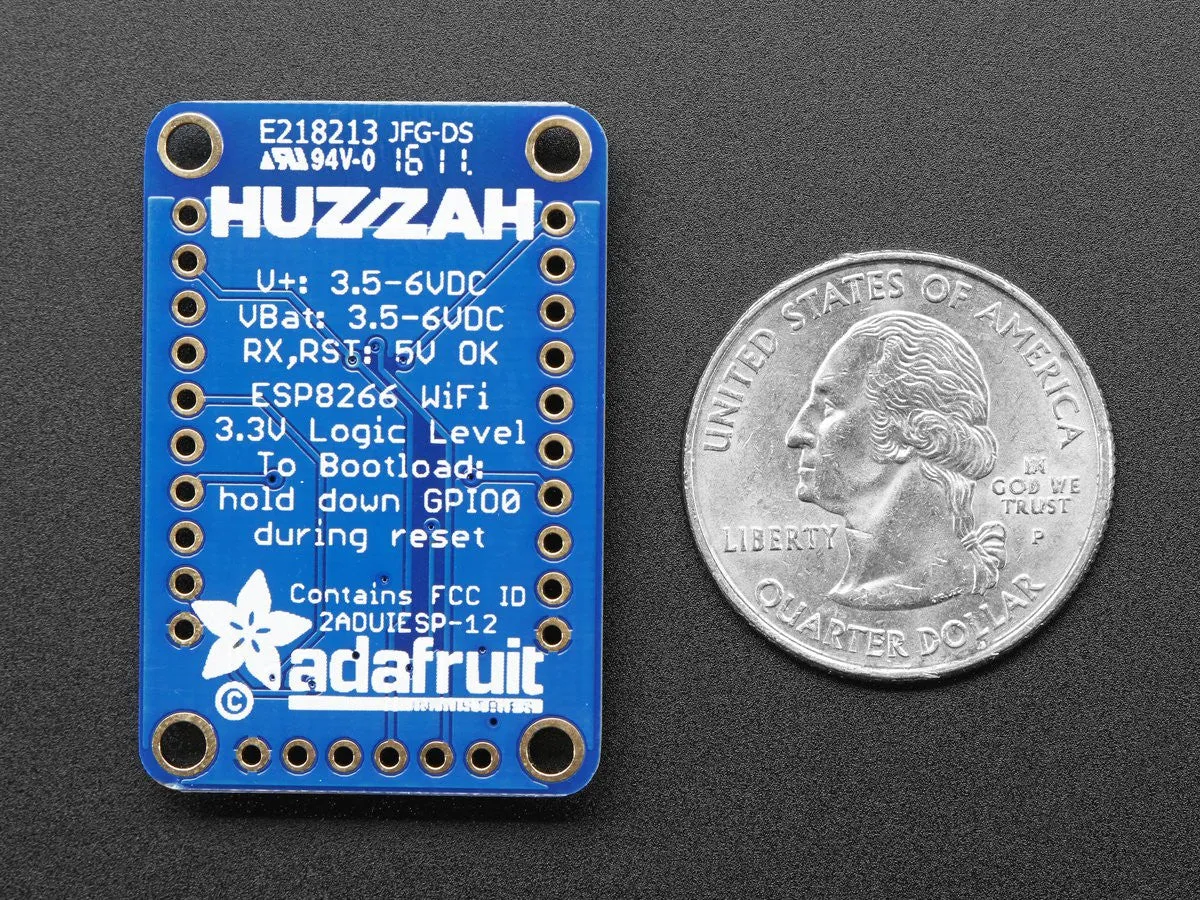

- for the module used on this breakout (Contains FCC ID: 2ADUIESP-12)
- Huuuuge amount of information on community forum!
- with examples and documentation on the Lua framework
You may get a blue or black module, they are identical.
Revision history: as of May 15, 2016 Adafruit have changed the power supply to run from a 6V DC max rather than 12V. At 12V the power supply would overheat anyways!
