Unveiling the Arrow Symbol Button - Power and Control at your fingertips

SPECIFICATIONS

Name: 22mm Button Switch Waterproof Momentary Self Reset Self Locking Flat Head Start Stop Arrow Symbol Power Push Button Switch 10A
SKU: 1327701

Brand Name: sweideer

Origin: Mainland China

Current: 10A

Features: Waterproof

Material: ALLOY

Item Type: SWITCHES

Warranty: 1 year

Switch Type: Push Button Switch

Certification: CE

Certification: CCC

Model Number: LA155-A1 Start, Stop, Arrow, Circle, Double Arrow, Button Switch

Is Smart Device: no

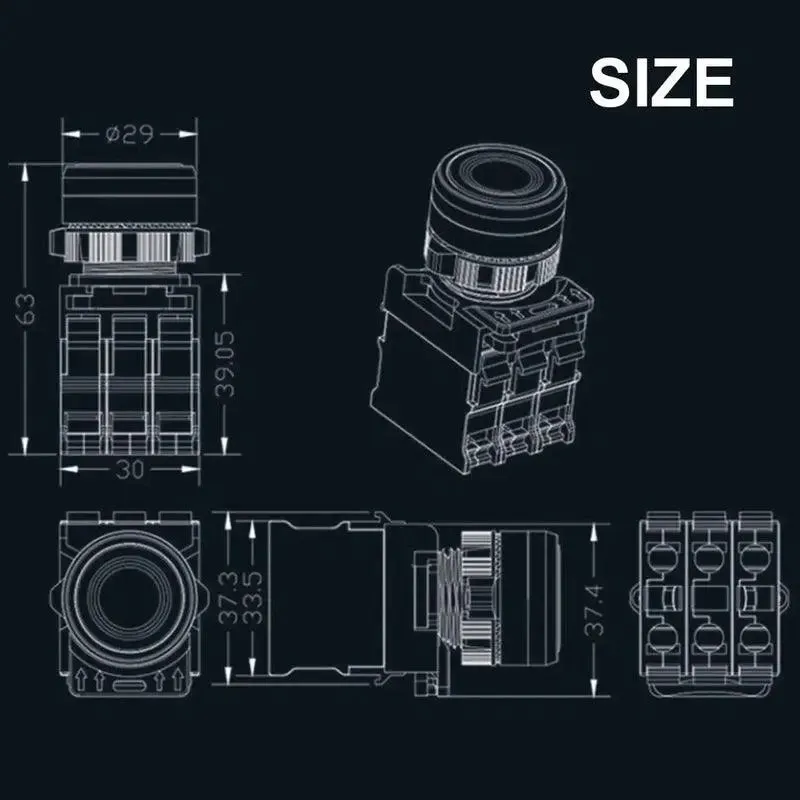

Opening diameter: 22MM

Contact material: Silver contact

Button contact: 1NO/1NC/1NO1NC/2NO/2NO2NC

Operation mode: Momentary self-reset / fixed self-locking

Product Specification
Product name: Symbol Flat Button switch
Contact material: Silver contact
Rated current: 10A
Opening diameter: 22MM
Button contact: 1NO/1NC/1NO1NC/2NO/2NO2NC
Operation mode: Momentary self-reset / fixed self-locking

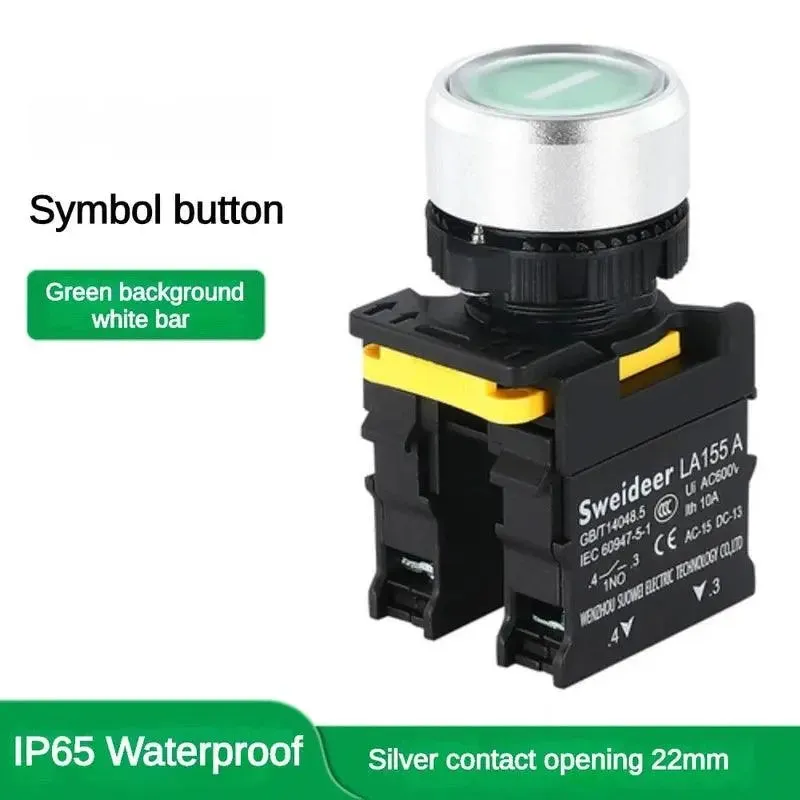

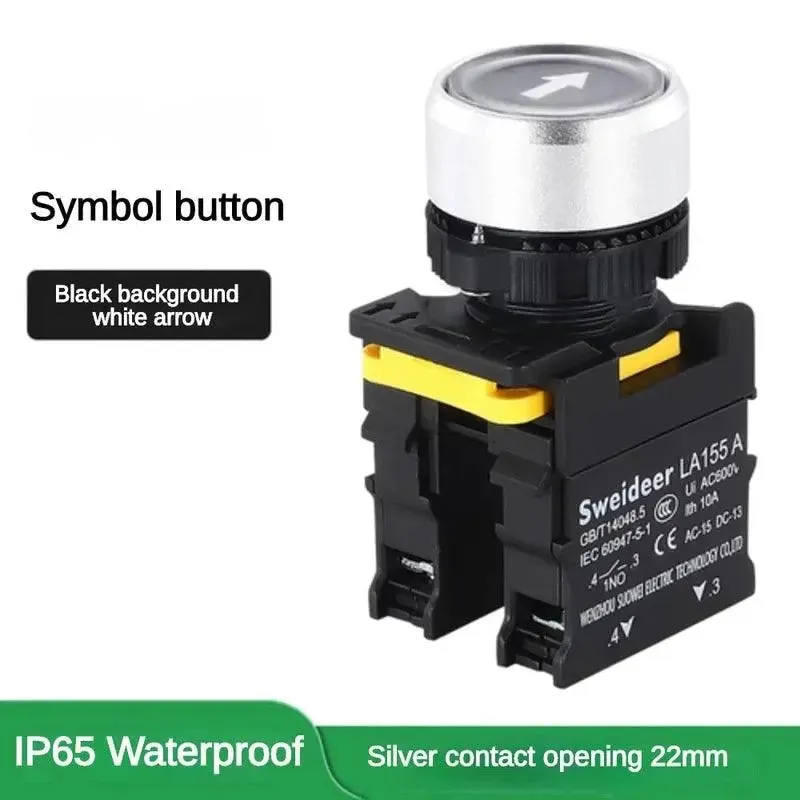

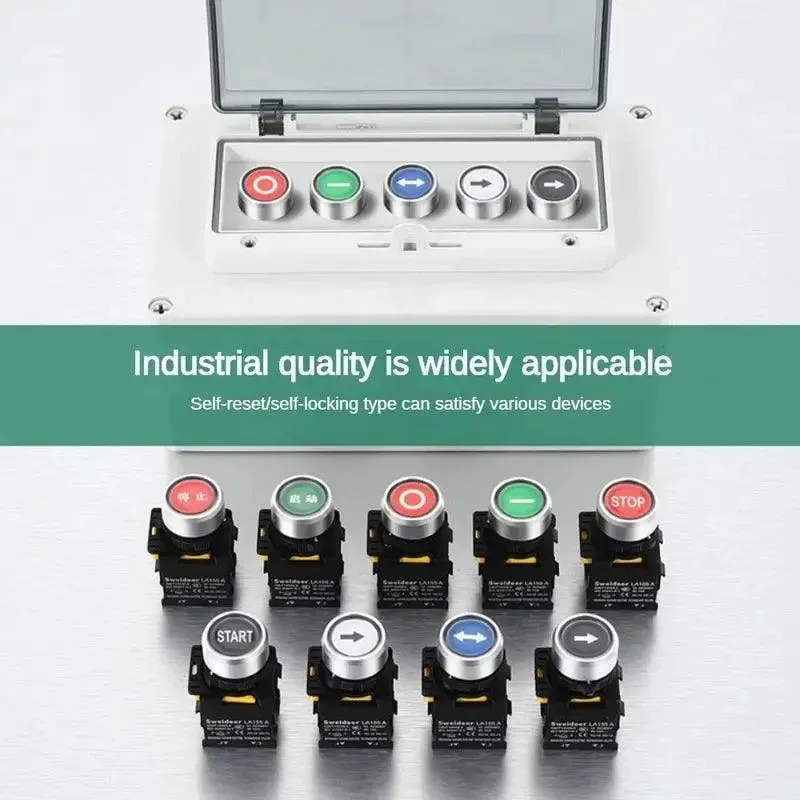

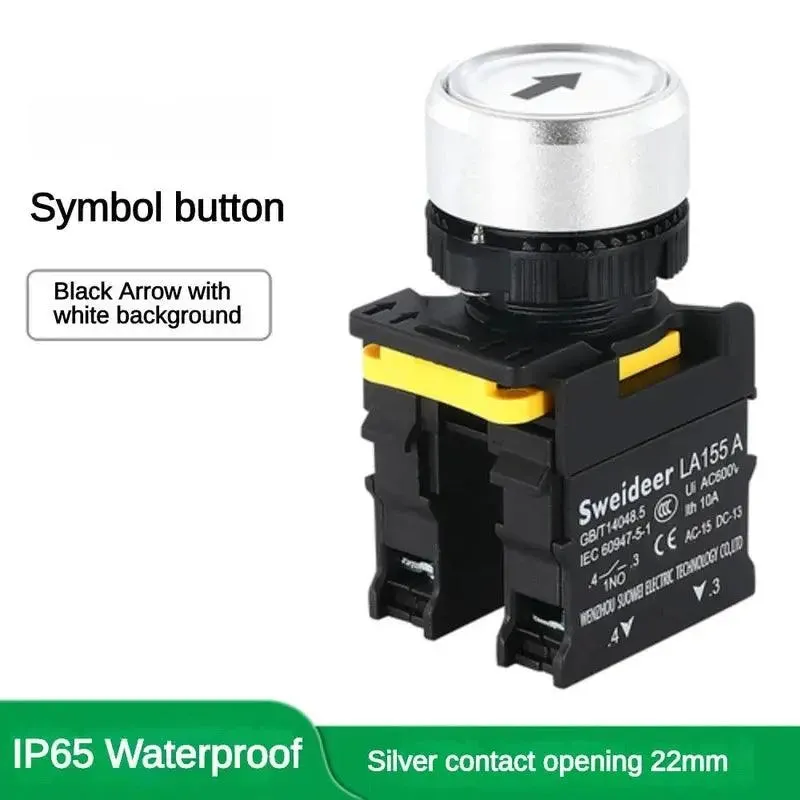

Button color: START,STOP,Black Arrow,White Arrow,White Circle,Double Arrow,White Bar
Product model: LA155-A1

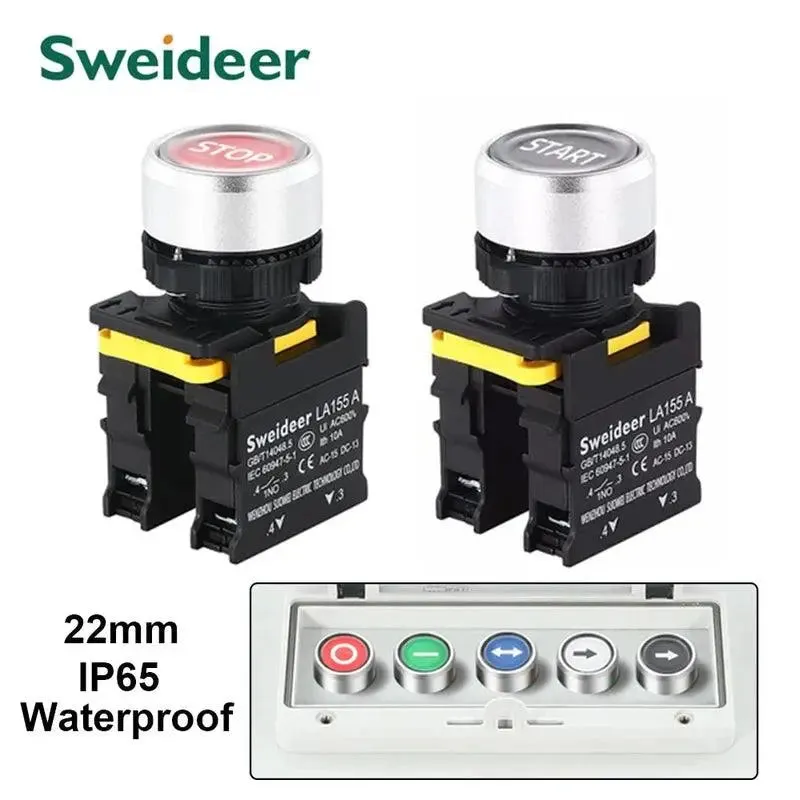

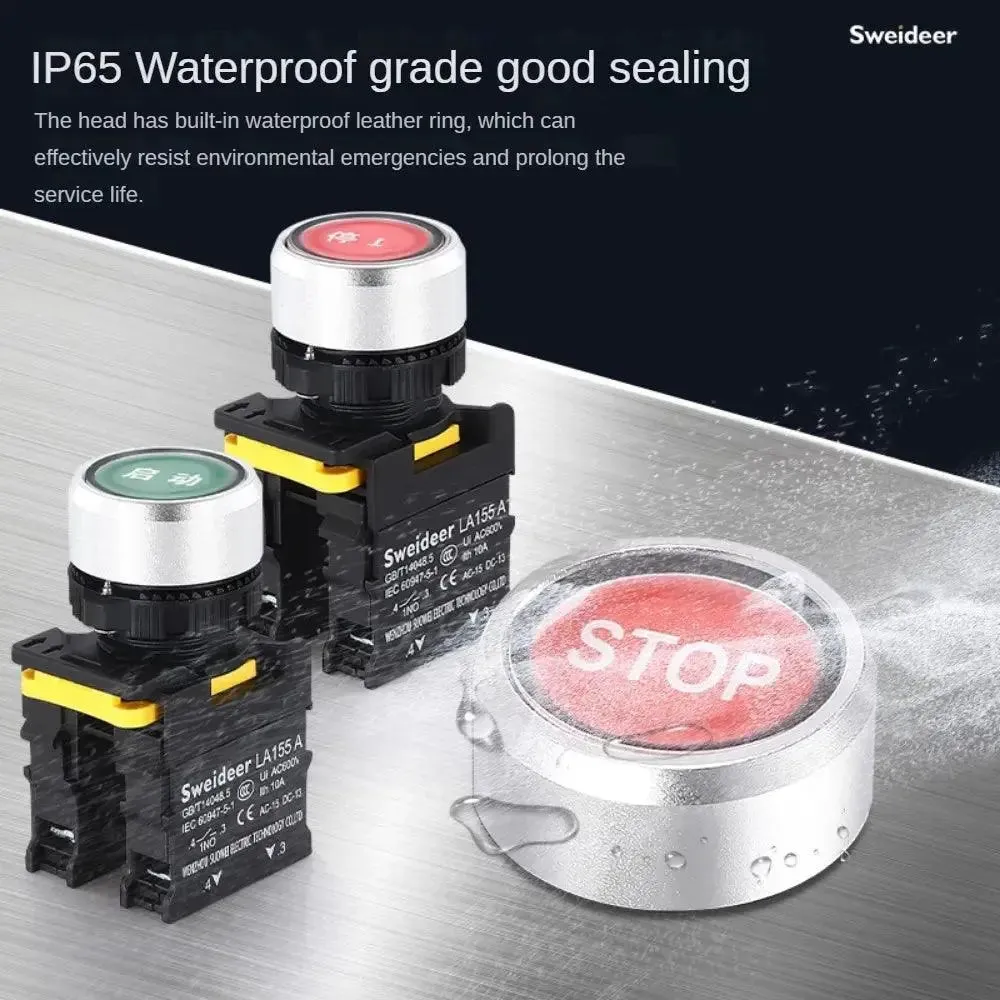

Waterproof grade: IP65

Package Content
1pc Symbol Flat Button switch

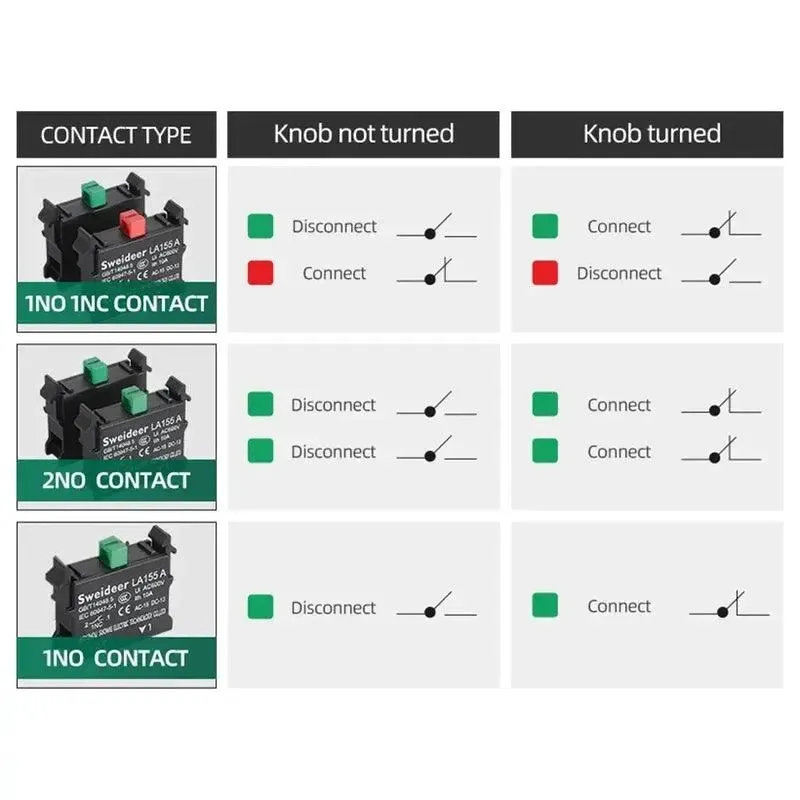

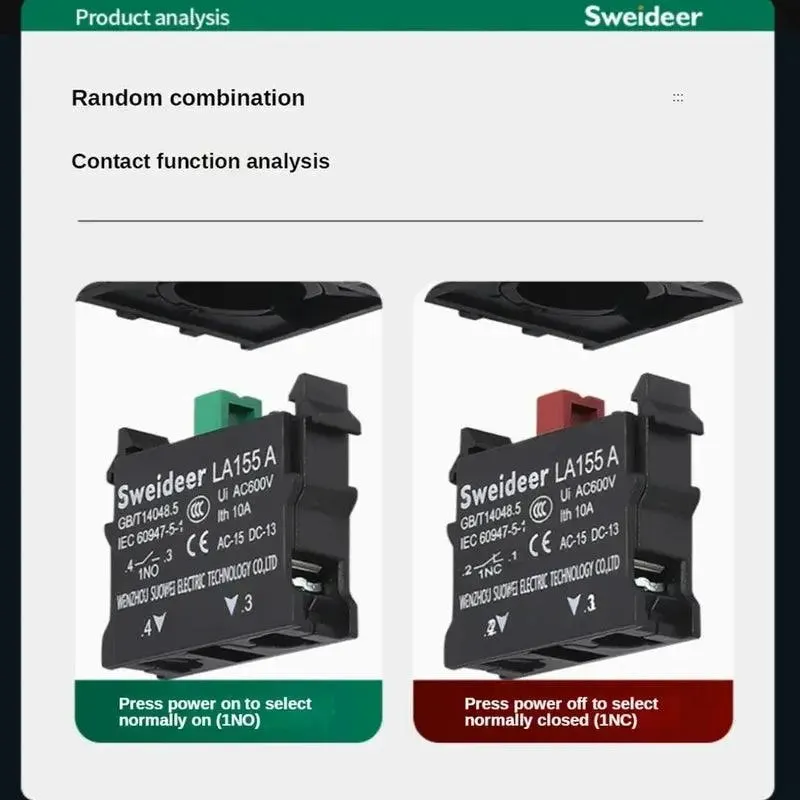

Contact modular combination

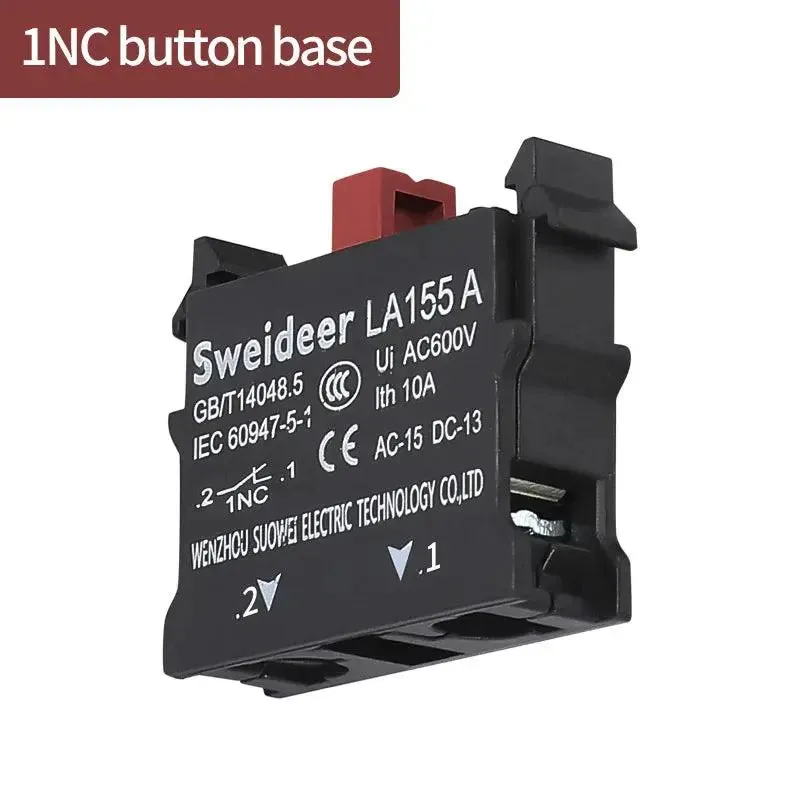

NO(normally open) and NC(normally closed ) contact can replace and add at any time .It can hold 1-6 pcs Contact modules at most.

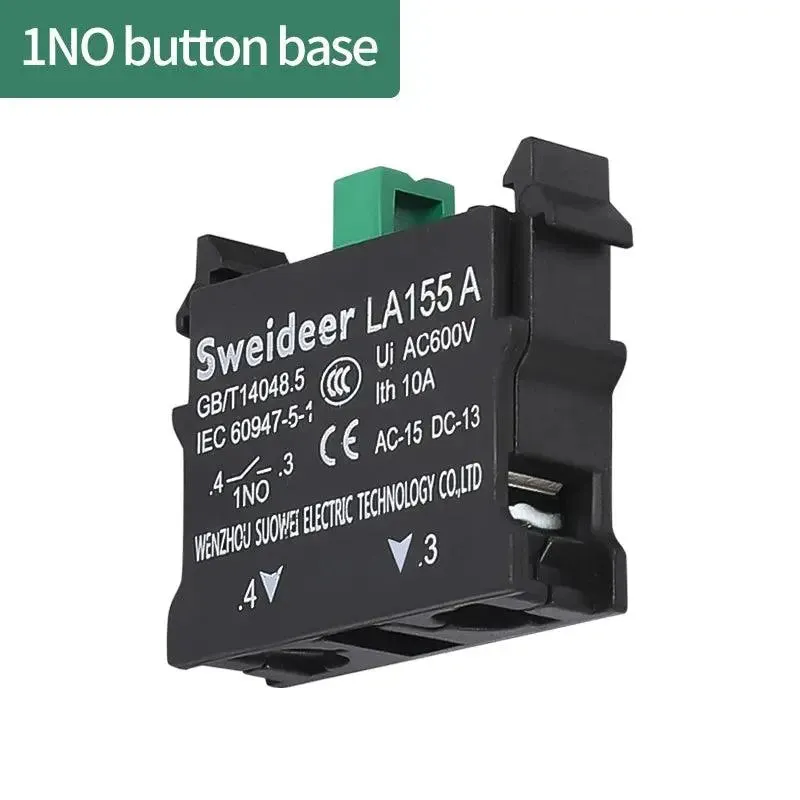

NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.
Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.

Our Arrow Symbol Button stands out for its remarkable efficiency and high quality. This 22mm button switch is self-resetting and self-locking, ensuring an excellent user experience with its advanced control features. It's designed to be waterproof, making it a reliable choice in various environments.

This Arrow Symbol Button is not just about functionality but also convenience. It boasts a flat head start-stop feature, providing a smooth interface for optimum control. The solid design is accompanied by a 10A power output, giving you the power you need for any circumstances.

The Arrow Symbol Button's paramount focus is on durability and dependability, serving a wide range of applications. It's perfect for those who value precision and control, making it an excellent choice for your control panel. The Arrow Symbol Button exceeds expectations in delivering power and control in its compact form.
